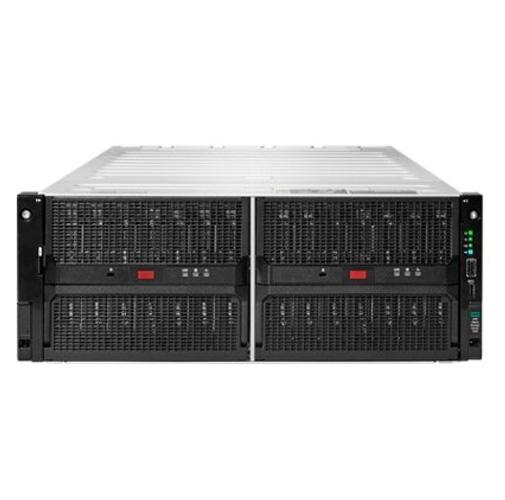

Successor to the industry leading HPE Apollo 4510 Gen10 System.

More data storage capacity and density for improved economics via the up to 53% increase in drive bays in the 68 LFF standard or 92 LFF extended rack depth 4U chassis

More data throughput with up to 2X the bandwidth from new tri-mode storage controllers coupled with new Dynamic Channel Multiplexing technology and eight PCIe Gen5 NVMe SSDs for cache and metadata.

More data processing with 4th generation Intel® Xeon® Scalable processors delivering improved performance plus DDR5 memory with up to 50%1 more bandwidth.

Enhanced zero trust security from silicon to software and factory to cloud with HPE Integrated Lights Out 6, including new support for the DMTF Security Protection Data Model.

Cloud operating experience built on the HPE GreenLake Cloud Platform for simplified and automated lifecycle management including dramatically easier firmware management.

Form factor:4U rack mount

Front drive bays:68 LFF SAS/SATA drives of 92 LFF SAS/SATA drives

Rear drive bays:Optional 8 E3.S 1Y Gen5 NVMe or 4 SFF Gen4 NVMe U.3 SSDs

Dedicated boot device:Optional hardware mirrored dual M.2 NVMe SSDs or direct attached dual M.2 NVMe SSDs

Storage controller:1 or 2 32-port with 8 GB cache (consume expansion slots) and optional Intel Virtual RAID on CPU (Intel VROC)

Network controller:Up to 2 PCIe full-height half-length and 2 OCP 3.0 controllers, up to 100 Gb/s 2-port (consume expansion slots)

Expansion slots:Up to 4 full-height half-length PCIe Gen5 slots and 2 OCP 3.0 slots with 2 processors installed

Memory slots:24 DDR5 memory slots (12 per processor) for 1.5 TB maximum

Processor family:Single or dual 4th generation Intel® Xeon® Scalable processors

Power specifications:4 HPE Flexible Slot (Flex Slot) Power Supplies of up to 2200W per Power Supply

System cooling:6 hot-pluggable system quad-fan modules with N+1 rotor redundancy

Security:TPM 2.0, iDevID, Silicon Root of Trust, logical Configuration Lock, Secure Boot, Secure Start, optional controller-based Secure Encryption, optional Self-Encrypting Drives, optional Secure Erase, logical Configuration Lock, optional drive drawer security locks, optional HPE Server Security Optimized Service

Infrastructure management:HPE iLO 6 Standard, HPE iLO 6 Advanced upgradable with license; HPE Compute Ops Management (subscription included) or optional HPE OneView (download required)

Warranty:3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response.

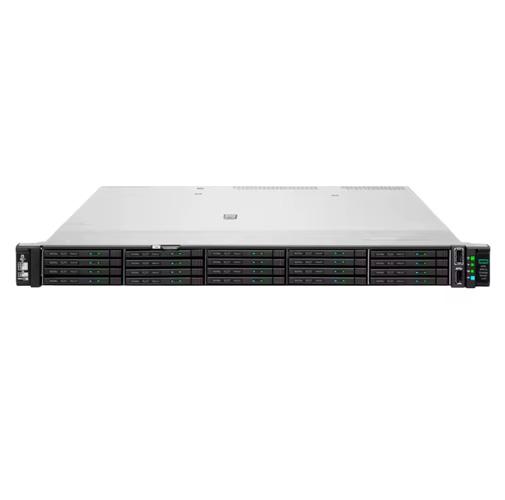

Con?gurable modular front storage for up to twenty direct connect EDSFF PCIe Gen5 SSDs. All-NVMe design with up to 315 GB/s bandwidth in a 1U standard form factor.

Dual Intel Xeon 6 processors drive greater performance along with DDR5 memory at speeds of up to 6400 MT/s with up to 14%1 more bandwidth for demanding data processing workloads.

HPE Integrated Lights-Out 7 (iLO 7) server management software with streamlined manageability through a redesigned GUI, Red?sh API, and increased security via patented secure enclave technology.

Cloud operating experience built on the HPE GreenLake Cloud for simpli?ed and automated lifecycle management including dramatically easier ?rmware management.

Support for up to three single-wide (SW) GPUs to unleash AI- driven data storage sever workloads.

Multiple HPE cooling options increase performance and energy e?iciency to support sustainability initiatives.

Form factor: 1U rack mount

Front drive bays: Configurable 20, 16, or 12 E3.S 1T NVMe

Dedicated boot device: Optional hardware mirrored dual M.2 NVMe SSDs (internal or rear)

Storage controller: Optional Intel Virtual RAID on CPU (Intel VROC)

Network controller: Up to 3 PCIe and 2 OCP 3.0 controllers

Expansion slots: Up to 3 PCIe Gen5 slots and 2 OCP 3.0 slots

Processor family: Dual Intel Xeon 6 Scalable processors

Accelerators: Up to 3 GPU or FPGA (single width, 75 W; consumes expansion slot)

Power specifications: 2 HPE Flexible Slot (Flex Slot) Power Supplies of up to 2200 W per Power Supply

System cooling: up to 7 hot-pluggable system fan modules with N+1 rotor redundancy, Close Loop Liquid Cooling Heatsink & Fan kit, or Direct Liquid Cooling Solution.

Security: TPM 2.0, iDevID, Silicon Root of Trust, logical Configuration Lock, Secure Boot, Secure Start, optional Self-Encrypting Drives, optional Secure Erase, optional lockable security bezel, optional HPE Server Security Optimized Service

Infrastructure management: Included - HPE iLO7 Standard with Intelligent Provisioning (embedded), HPE OneView Standard (download required).
Optional - HPE iLO7 Advanced upgradable with license, HPE Compute Ops Management (subscription), and HPE OneView Advanced.

Warranty: 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response

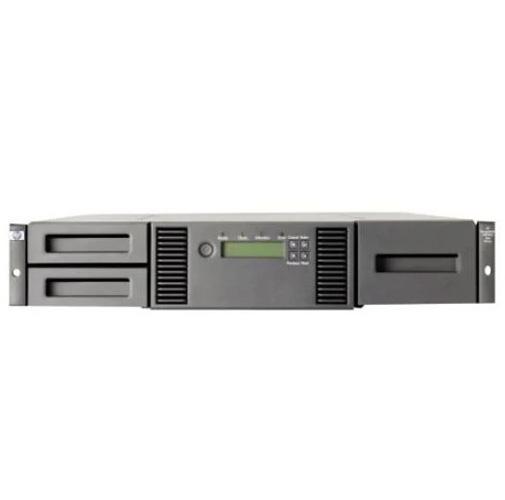

HPE Smart Choice with MSL2024 tape libraries featuring LTO-8 and LTO-9 drives are available with FC or SAS interfaces. These models can be quickly quoted and shipped through HPE authorized partners.

Drive type:
LTO-9 Ultrium 45000
LTO-8 Ultrium 30750
LTO-7 Ultrium 15000
LTO-6 Ultrium 6250
Maximum 2x drives supported per library

Capacity: 1.08 PB (LTO-9) compressed 2.5:1

Transfer rate: 2.16 TB/hr (2x LTO-9)

Number of cartridge slots: 24

Maximum drives per enclosure: 2

Host interface: 8 Gb/sec Fibre Channel
6 Gb/sec SAS (LTO-6, LTO-7, LTO-8)
12 Gb/sec SAS (LTO-9)

Encryption capability: AES 256-bit

Form factor: 2U

Warranty: Hewlett Packard Enterprise provides a 1-year, next business day on-site, part exchange, limited warranty for the MSL2024 Tape Library and its components including drives, plus 9x5 phone support for the duration of the warranty. For more details, please visit HPE Services.

Detailed product description: HPE StoreEver MSL2024 tape library with no drives included

Weight: 14.9 kg (32.9 lb)

Dimensions: 8.7 x 48 x 80.6 cm (3.4 x 18.9 x 31.7 in)

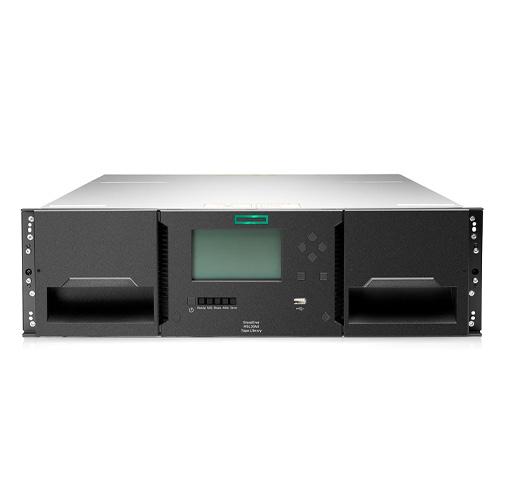

The HPE Smart Choice purchase program includes the popular MSL3040 library featured with LTO-9 FC or SAS interfaces that can be quickly quoted and shipped through HPE authorized partners.

Drive type:
LTO-9 Ultrium 45000
LTO-8 Ultrium 30750
LTO-7 Ultrium 15000
Available with SAS and Fibre Channel interfaces

Capacity: Up to 28.8 PB, maximum assuming 640 slots with LTO-9 compressed 2.5:1

Transfer rate: 300 MB/s

Number of cartridge slots: Scale from 40 to 640 slots
40 slots for the base module
40 slots per each expansion module

Maximum drives per enclosure: 3 drives per module to a total of 48 drives

Host interface: 8 GB/s Fibre Channel
6 GB/s SAS (LTO-7, LTO-8)
12 GB/s SAS (LTO-9)

Encryption capability: AES 256-bit

Form factor: 3U per module to a maximum of 48U

Warranty: Hewlett Packard Enterprise provides a 1-year, next business day on-site, part exchange, limited warranty for the MSL3040 Tape Library and its components including drives, plus 9x5 phone support for the duration of the warranty.

Weight: The weight of each library varies based on the type and number of LTO tape drives and LTO media contained in the configuration

Dimensions: 13.3 x 48.2 x 87.3 cm (HxWxD) (5.24 x 18.98 x 34.27 in (HxWxD))

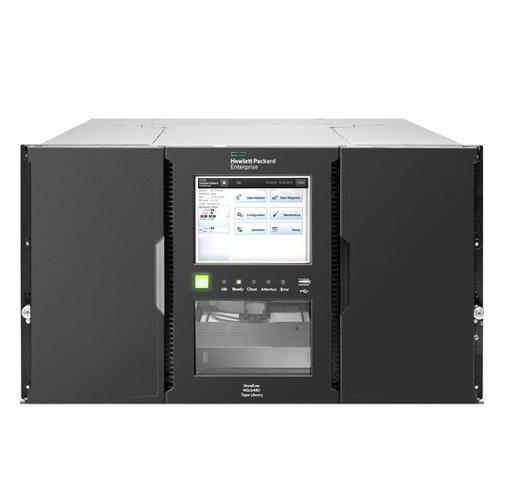

The HPE Storage MSL6480 Tape Library now supports LTO-9 technology.

LTO-9 SAS drives are available on a 12 Gb/s interface.

Drive type: LTO-9 Ultrium 45000
LTO-8 Ultrium 30750
LTO-7 Ultrium 15000
Available with SAS or Fibre Channel interfaces

Capacity: 45TB starting 25.2PB maximum Assumes use of LTO-9 with 2.5:1 data compression

Transfer rate: 113.4 TB/hr maximum, compressed

Number of cartridge slots: 80 slots per 6U module, scale from 80 to 560 slots in a fully expanded HPE Storage MSL6480 Tape Library

Maximum drives per enclosure: 6
Host interface: 8 Gb/s Fibre Channel
6 Gb/s SAS (LTO-6, LTO-7, LTO-8)
12 Gb/s SAS (LTO-9)

Encryption capability: AES 256-bit

Form factor: 6U per module to a maximum of 42U

Warranty: 1-year parts, 1-year labor, 1-year onsite support coverage. For more warranty information refer to http://h20564.www2.hpe.com/hpsc/wc/public/home.

Weight: The weight of each library varies somewhat based on the type and number of LTO tape drives and LTO media contained in the configuration.

Dimensions: 26.8 x 47.5 x 89.2 cm (10.55 x 18.7 x 35.1 in)

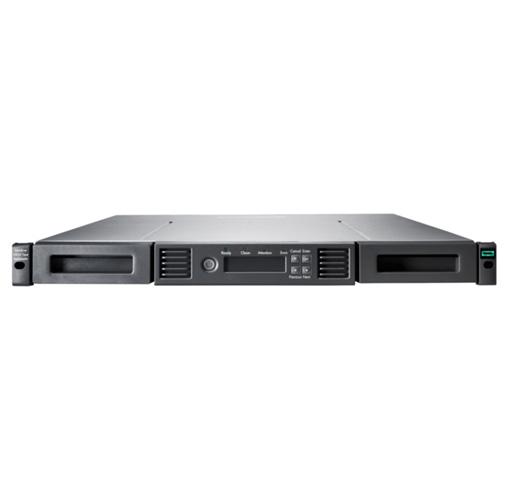

HPE Storage MSL Entry-level Tape Automation now supports Multi-factor Authentication (MFA).

HPE Smart Choice models with MSL tape autoloader featuring LTO-8 & LTO-9 drives are available with FC or SAS interfaces. These models can be quickly quoted and shipped through HPE authorized partners.

Drive type: LTO-9 Ultrium 45000;
LTO-8 Ultrium 30750;
LTO-7 Ultrium 15000

Capacity: 360 TB compressed 2.5:1 for HPE 1/8 tape autoloader with LTO-9 tapes

Transfer rate: 300 MB/s

Number of cartridge slots: 8 cartridge slots

Maximum drives per enclosure: One drive maximum

Host interface: 8 GB/s Fibre Channel (LTO-7, LTO-8, LTO-9)
6 GB/s SAS (LTO-7, LTO-8)
12 GB/s SAS (LTO-9)

Encryption capability: AES 256-bit

Form factor: 1U

Dimensions: Autoloader: 4.4 x 48.2 x 80.9 cm (HxWxD)

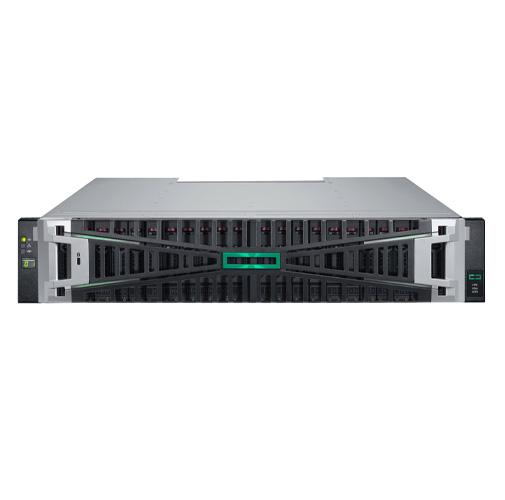

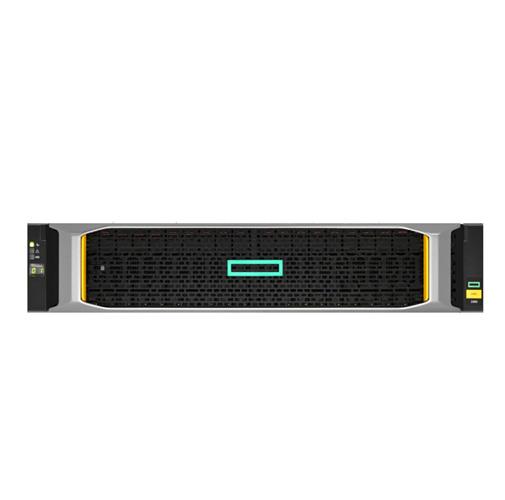

HPE Smart Choice MSA Gen7 all-flash storage array bundles with up to 92 TB of raw storage capacity included, supporting 16/32 Gb Fibre Channel, 10/25 GbE iSCSI, and 12 Gb SAS host connectivity.

All MSA Gen6 and Gen7 storage array models are now fully certified for use with HPE Morpheus VM Essentials Software.

Drive description: Two 1.92 TB Read Intensive SSDs included; Add up to twenty-two additional SFF HDD and/or SSD per base array

Capacity: Up to 2.76 PB with maximum capacity expansion

Storage expansion options: 2U 24-drive SFF drive enclosure and/or 2U 12-drive LFF drive enclosure (add up to 9)

Storage controller: 2x 16 Gb Fibre Channel 4-port Controller

Form factor: 2U rack mount

Energy efficiency: Energy Star Compliant

Host connectivity: 16 Gb Fibre Channel

Drive form factor: SFF

Included drives: 2x HPE MSA 1.92TB SAS 12G Read Intensive SFF (2.5in) M2 3yr Wty SSD

SED Drives Supported: No

HPE Smart Choice MSA Gen7 all-flash storage array bundles with up to 92 TB of raw storage capacity included, supporting 16/32 Gb Fibre Channel, 10/25 GbE iSCSI, and 12 Gb SAS host connectivity.

All MSA Gen6 and Gen7 storage array models are now fully certified for use with HPE Morpheus VM Essentials Software.

Drive description: Up to twenty-four SFF HDD and/or SSD per base array

Capacity: Up to 7.37 PB with maximum capacity expansion

Storage expansion options: 2U 24-drive SFF drive enclosure and/or 2U 12-drive LFF drive enclosure (add up to 9)

Storage controller: 2x 16 Gb Fibre Channel 4-port Controller

Form factor: 2U rack mount

Energy efficiency: Energy Star Compliant

Host connectivity: 16 Gb Fibre Channel

Drive form factor: SFF

Included drives: No drives ship standard, up to 24 SFF HDD or SSD supported per base array model

SED Drives Supported: Yes

HPE Smart Choice MSA Gen6 hybrid-flash storage array bundles with 32 TB of raw storage capacity included, supporting 16 Gb Fibre Channel, 10 GbE iSCSI, and 12 Gb SAS host connectivity.

All MSA Gen6 and Gen7 storage array models are now fully certified for use with HPE Morpheus VM Essentials Software.

Drive description: Up to 24 SFF HDD and/or SSD per array or drive enclosure, depending on selected model

Capacity: 1.83 PB (all SFF expansion) to 2.76 PB (all LFF expansion) with maximum expansion; depending on model and configuration

Storage expansion options: 24 drive bay 2060 SFF drive enclosures and/or 12 drive bay 2060 LFF drive enclosures (add up to 9)

Storage controller: 2 controllers per array, 4-ports per controller (8-ports total)

Form factor: 2U Rack Mount

Energy efficiency: Energy Star Compliant

Weight: 5.0 kg (11.0 lbs)

Dimensions: 8.9 x 44.5 x 50.8 cm (3.5 x 17.5 x 20.0 in)

HPE Smart Choice MSA Gen6 storage array bundles with up to 240 TB of raw storage capacity included, supporting 16 Gb Fibre Channel, 10 GbE iSCSI, and 12 Gb SAS host connectivity.

All MSA Gen6 and Gen7 storage array models are now fully certified for use with HPE Morpheus VM Essentials Software.

Drive description: Up to 12 LFF HDD and/or SSD or up to 24 SFF HDD and/or SSD per array base model, depending on model form factor

Capacity: Up to 7.37 PB (all SFF) and 2.88 PB (all LFF); depending on model and drive mix

Storage expansion options:24 drive bay 2060 SFF drive enclosure or 12 drive bay 2060 LFF drive enclosure (add up to 9 with any combination)

Storage controller: 2 per array, 4-ports each (8-ports total)

Form factor: 2U rack mount

Energy efficiency: Energy Star Compliant

Weight: 5 kg (11 lb)

Dimensions:8.9 x 44.5 x 50.8 cm (3.5 x 17.5 x 20.0 in)

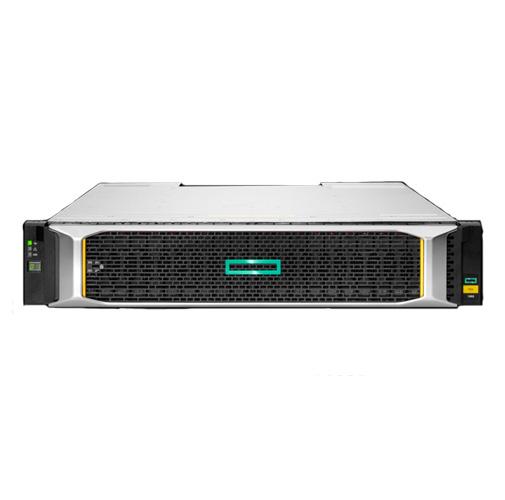

MSA 1060 Smart Choice array models delivering a complete solution with 14.4 TB of starting raw storage capacity.

New MSA Gen6 HDD and SSD media options supporting an increase in MSA 1060 raw capacity of up to 2.8X for a total maximum array storage capacity of 2.95 PB.

Drive description: Up to 24 SFF HDD and/or SSD on all MSA 1060 array models

Capacity: 2.95 PB SFF only / 1.6 PB SFF + LFF (total array capacity with maximum expansion)

Storage expansion options: 24 drive bay SFF 2060 disk enclosure or 12 drive bay LFF 2060 disk enclosure (add up to 3)

Host interface: 16 Gb Fibre Channel, 10GBase-T iSCSI, or 12 Gb SAS; depending on model

Storage controller: 2 per array, 2-ports each (4-ports total)

SAN backup support: Yes

Storage mirroring support: No

• Brand: Hp
• Model: HPE MSA 2060 16Gb FC SFF 2u 8 ports Storage
• Form factor: 2U Storage
• Drive description: Up to 24 SFF HDD and/or SSD per array model
• Capacity: 1843.2 TB with SFF expansion / 2344.32 TB with LFF expansion (with maximum expansion)
• Storage expansion options: 24 drive bay 2060 SFF drive enclosure and/or 12 drive bay 2060 LFF drive enclosure (add up to 9)
• Host interface: 8-ports 16 Gb FC, 4 ports per controller
• Storage controller: 2 per array, 4-ports each (8-ports total)
• SAN backup support: Yes
• Storage mirroring support: No
• Systems Insight Manager support: No
• Clustering support: Yes
• Energy efficiency: Energy Star Compliant
• Weight: 5 kg
• Dimensions: 8.9 x 44.5 x 50.8 cm
• Warranty: 3 years Business Warranty

• Brand: Hp
• Model: HPE MSA 2060 12Gb SAS 2u 8 Ports Storage
• Form factor: 2U Storage
• Drive description: Up to 24 SFF HDD and/or SSD per array model
• Capacity: 1843.2 TB with SFF expansion / 2344.32 TB with LFF expansion (with maximum expansion)
• Storage expansion options: 24 drive bay 2060 SFF drive enclosure and/or 12 drive bay 2060 LFF drive enclosure (add up to 9)
• Host interface: 8-ports 12 Gb SAS, 4 ports per controller
• Storage controller: 2 per array, 4-ports each (8-ports total)
• SAN backup support: Yes
• Storage mirroring support: No
• Systems Insight Manager support: No
• Clustering support: Yes
• Energy efficiency: Energy Star Compliant
• Weight: 5 kg
• Dimensions: 8.9 x 44.5 x 50.8 cm
• Warranty: 3 years Business Warranty

• Brand: Hp

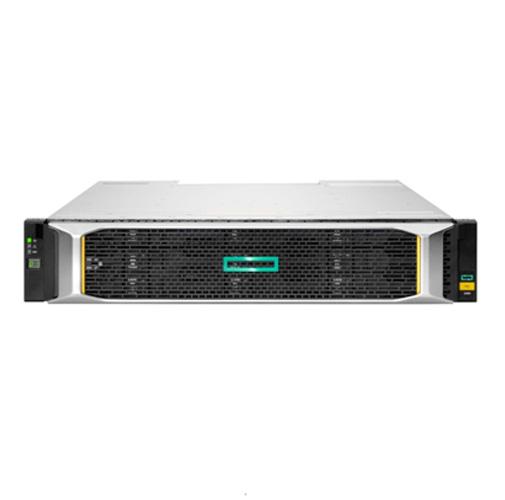

• Model: HPE MSA 2060 SAN 2u 24 drive Storage
• Form factor: 2U Storage
• Drive description: Up to 12 LFF HDD and/or SSD or up to 24 SFF HDD and/or SSD per array, depending on model
• Capacity: Up to 1,843.2 TB (all SFF) and 2.4 PB (all LFF); depending on model, depending on drive mix
• Storage expansion options: 24 drive bay 2060 SFF drive enclosure or 12 drive bay 2060 LFF drive enclosure (add up to 9)
• Host interface: 16 Gb Fibre Channel, 10/25GbE iSCSI, 10GBase-T iSCSI, or 12 Gb SAS; depending on model
• Storage controller: 2 per array, 4-ports each (8-ports total)
• SAN backup support: Yes
• Storage mirroring support: No
• Systems Insight Manager support: No
• Clustering support: Yes
• Energy efficiency: Energy Star Compliant
• Weight: 5 kg
• Dimensions: 8.9 x 44.5 x 50.8 cm
• Warranty: 3 years Business Warranty

• Brand: Hp
• Model: HPE StoreEasy 1860 Storage 2u Rack Mount With Microsoft
• Form factor (fully configured): 2U rack mount Storage
• Clustering support: Not supported on HPE StoreEasy 1000 Storage appliances
• HD type: Hot-plug SATA or SAS, SFF (2.5")
• Snapshot support: Microsoft Volume Shadow Copy Service (VSS)
• Weight: 28.77 kg maximum (without rear drives) (63.43 lbs maximum (without rear drives))
• Dimensions: 8.75 x 44.54 x 71 cm (without bezel) (3.44 x 17.54 x 28 in (without bezel))
• Warranty: 3 years Business Warranty

• Part No:AJ749A
• Form factor:2 U rack mountable
• Expansion Bays:12 LFF (3.5-inch)
• Power supply:595 watts

• Part No:AG638B
• Form factor:2 U rack mountable
• Expansion Bays:12 hot-swap
• Power supply:1+1
• Brand:HP Storage

• Brand:HP
• Power Supply:Redundant Hot Pluggable
• Form Factor:4 U Rack
• Expansion Bays:14 drives
• Hard Disk:Up to 2 TB
• Raid Support:Raid 0, 1, 1+0, 5 and ADG standard

Color:Black
Capacity:240GB, 480GB, 960GB
Interface:2.5” SATA III (6Gb/s)
Speed:960GB sequential read up to 550MB/s, write up to 510MB/S IOPS: up to 88/80K 240-480GB sequential read up to 550MB/s, write up to 510MB/s IOPS: up to 95/90K
Operating Temperature:0°C to 70°C
Storage Temperature:-40°C to 85°C
Shock Resistant:1500G, duration 0.5ms, Half Sine Wave
Vibration Resistant:10~2000Hz, 1.5mm, 20G, 1 Oct/min, 30min/axis(X,Y,Z)
TBW:240GB: 120TB, 480GB: 240TB, 960GB: 480TB
DWPD:240GB: 0.46, 480GB: 0.46, 960GB: 0.46
Dimension (W x L x H):100.2mm x 69.85mm x 7mm / 2.75” x 3.94” x 0.28”
Weight:34g

• SMB/CIFS and Network File System (NFS) over Ethernet
• iSCSI Block over Ethernet; FC for backup
• Network Storage Type: NAS server
• Number of Bays: 12 bays (upto 100 - 7900 users)
• Storage Capacity: 48 TB Raw Internal SATA Included
• Interface: Serial ATA-600 / SAS 2.0
• Network controller: 1GbE 4 port 331i Ethernet Adapter
• Form Factor: Rack-mountable 2U
• Storage Operating System: Microsoft Windows Storage Server 2012 R2 Standard
• Hard Disk: SATA 6Gb/s / SAS 6Gb/s, HDD 6 TB x 8, RAID 1
• SATA 6Gb/s / SAS 6Gb/s, HDD 2 TB x 8, RAID 1
• Features: File Sync and Share, Deduplication, Snapshots, Replication, File Classification, Quotas, File Screening, Storage Reporting
• 3 Years Warranty

• iSCSI Block over Ethernet; FC for backup
• Network Storage Type: NAS server
• Number of Bays: 12 bays (upto 100 - 5500 users)
• Storage Capacity: 16 TB Raw Internal SATA Included
• Interface: Serial ATA-600 / SAS 2.0
• Network controller: 1GbE 4 port 331i Ethernet Adapter
• Form Factor: Rack-mountable 2U
• Storage Operating System: Microsoft Windows Storage Server 2012 R2 Standard
• Hard Disk: SATA 6Gb/s / SAS 6Gb/s, HDD 2 TB x 8, RAID 1
• Features: File Sync and Share, Deduplication, Snapshots, Replication, File Classification, Quotas, File Screening, Storage Reporting
• 3 Years Warranty


• SMB/CIFS and Network File System (NFS) over Ethernet
• iSCSI Block over Ethernet; FC for backup
• Network Storage Type: NAS server
• Number of Bays: 4 bays (upto 50 - 2000 users)
• Storage Capacity: 8 TB Raw Internal SATA Included
• Interface: Serial ATA-600 / SAS 2.0
• Network controller: 1Gb 350i Ethernet Adapter
• Form Factor: Rack-mountable 1U
• Hard Disk: SATA 6Gb/s / SAS 6Gb/s, HDD 2 TB x 4, RAID 1
• Features: File Sync and Share, Deduplication, Snapshots, Replication, File Classification, Quotas, File Screening, Storage Reporting
• 3 Years Warranty


• SMB/CIFS and Network File System (NFS) over Ethernet
• iSCSI Block over Ethernet; FC for backup
• Network Storage Type: NAS server
• Number of Bays: 12 bays (upto 100 - 7900 users)
• Storage Capacity: 48 TB Raw Internal SATA Included
• Interface: Serial ATA-600 / SAS 2.0
• Network controller: 1GbE 4 port 331i Ethernet Adapter
• Form Factor: Rack-mountable 2U
• Storage Operating System: Microsoft Windows Storage Server 2012 R2 Standard
• Hard Disk: SATA 6Gb/s / SAS 6Gb/s, HDD 6 TB x 8, RAID 1
• SATA 6Gb/s / SAS 6Gb/s, HDD 2 TB x 8, RAID 1
• Features: File Sync and Share, Deduplication, Snapshots, Replication, File Classification, Quotas, File Screening, Storage Reporting
• 3 Years Warranty

iSCSI Block over Ethernet; FC for backup
Network Storage Type: NAS server
Number of Bays: 12 bays (upto 100 - 5500 users)
Storage Capacity: 16 TB Raw Internal SATA Included
Interface: Serial ATA-600 / SAS 2.0
Network controller: 1GbE 4 port 331i Ethernet Adapter
Form Factor: Rack-mountable 2U
Storage Operating System: Microsoft Windows Storage Server 2012 R2 Standard
Hard Disk: SATA 6Gb/s / SAS 6Gb/s, HDD 2 TB x 8, RAID 1
Features: File Sync and Share, Deduplication, Snapshots, Replication, File Classification, Quotas, File Screening, Storage Reporting
3 Years Warranty


• SMB/CIFS and Network File System (NFS) over Ethernet
• iSCSI Block over Ethernet; FC for backup
• Network Storage Type: NAS server
• Number of Bays: 4 bays (upto 50 - 2000 users)
• Storage Capacity: 8 TB Raw Internal SATA Included
• Interface: Serial ATA-600 / SAS 2.0
• Network controller: 1Gb 350i Ethernet Adapter
• Form Factor: Rack-mountable 1U
• Hard Disk: SATA 6Gb/s / SAS 6Gb/s, HDD 2 TB x 4, RAID 1
• Features: File Sync and Share, Deduplication, Snapshots, Replication, File Classification, Quotas, File Screening, Storage Reporting
• 3 Years Warranty

• Controller Architecture: MSA Gen 4
• Host Port Count: 2 Ports per Controller
• Controller Cache: 4GB
• Controller Design: Factory-configured, SFPs included
• Interfaces Supported: 6Gb/12Gb SAS, 1GbE iSCSI, 10GbE iSCSI, 8Gb FC
• Expansion: 3 additional enclosures max (upto 48 LFF drives)
• HDDs Supported: SAS
• HPE MSA 4TB 6G SAS 7.2K rpm LFF (3.5-inch) Midline *4Numbers
• Snapshots: 64 standard, 512 optional
• Form factor: Rack-mountable 2U
• Replication: Local standard, remote optional
• Performance: 29.4k/19.7k random R/W iOPS; 3.1/1.5 sequential R/W GB/s
• Protocol: iSCSI
• LFF Storage with 16 TB of RAW Capacity using MDL-SAS Disks

• HPE MSA 1040 2-port Fibre Channel Dual Controller SFF Storage / 8GB Cache / 4 x 8Gbps FC Ports / Snapshot and Clone included / Support 512 LUN's with maximum LUN Size of 64 TB)
•  HPE MSA 900GB 12G SAS 10K 2.5in ENT HDD *4Numbers
• Controller Architecture: MSA Gen 4
• Host Port Count: 2 Ports per Controller
• Controller Cache: 4GB
• Controller Design: Factory-configured, SFPs included
• Interfaces Supported: 6Gb/12Gb SAS, 1GbE iSCSI, 10GbE iSCSI, 8Gb FC
• Expansion: 3 additional enclosures max (upto 99 SFF drives)
• HDDs Supported: SAS
• HPE MSA 900GB 12G SAS 10K 2.5in ENT HDD *4Numbers
• Snapshots: 64 standard, 512 optional
• Replication: Local standard, remote optional
• Form factor: Rack-mountable 2U
• Performance: 29.4k/19.7k random R/W iOPS; 3.1/1.5 sequential R/W GB/s
• Protocols: iSCSI
• SFF Storage with 2.4 TB of RAW Capacity using SAS Drives


• Product Name : Hpe Storeeasy 1650 E 48TB SAS Storage
• Manufacturer Part Number : N9Y10A
• Product Line : StoreEasy
• Product Model : 1650
• Product Type : NAS Server
• Standard Memory : 16 GB
• Processor Manufacturer : Intel
• Processor Type : Xeon
• Processor Model : E5-2609 v3
• Processor Core : Hexa-core (6 Core)
• Processor Speed : 1.90 GHz
• Height : 3.4"
• Width : 32"
• Form Factor : Rack-mountable

• Product Name : 16TB Storeeasy 1650 SAS Storage
• Manufacturer Part Number : K2R16A
• Product Line : StoreEasy
• Product Series : 1000
• Product Model : 1650
• Product Type : NAS Server
• Number of Processors : Installed    1
• Processor Manufacturer : Intel
• Processor Type : Xeon
• Processor Model : E5-2609 v3
• Processor Core : Hexa-core (6 Core)
• Processor Speed : 1.90 GHz
• Height : 3.4"
• Width : 17.5"
• Form Factor : Rack-mountable

• Product Name : Storeeasy 1450 Storage
• Manufacturer Part Number : K2R11A
• Product Line : StoreEasy
• Product Series : 1000
• Product Model : 1450
• Product Type : NAS Server
• Network (RJ-45) : Yes
• Height : 4.3"
• Width : 17.1"
• Form Factor : Rack-mountable
