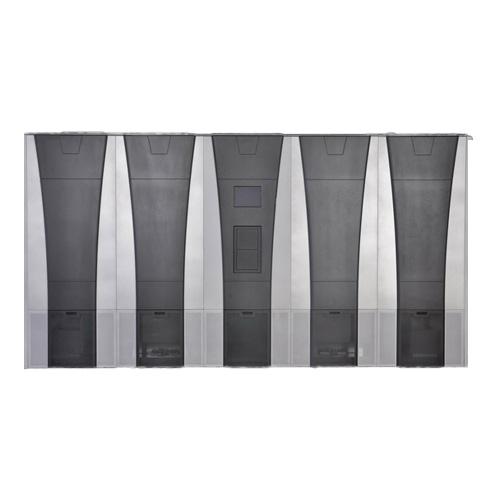

Support for full height LTO-10 Fibre Channel and SAS drives.

Drive type: LTO-10, LTO-9, LTO-8, LTO-7, LTO-6, TS1170, TS1160 168 drives, maximum supported

Capacity: 6.45 EB compressed 3:1, maximum using TS1170 technology
4.23 EB compressed 2.5:1, maximum using LTO-10 technology

Transfer rate: 725.8 TB per hour compressed, maximum using TS1170 technology; 725.8 TB per hour compressed, maximum using LTO-10 technology

Number of cartridge slots: 42,930 slots, maximum supported using TS technology; 56,400 slots, maximum supported using LTO Ultrium

Encryption capability: Hardware-based encryption through Enterprise Secure Key Manager (ESKM), BlueScale Professional Encryption, and Spectra Security Lifecycle Manager (SKLM)

Form factor: 29 inch, 42U free-standing frame, maximum of 45

Warranty: 1-year warranty from date of shipment from the factory

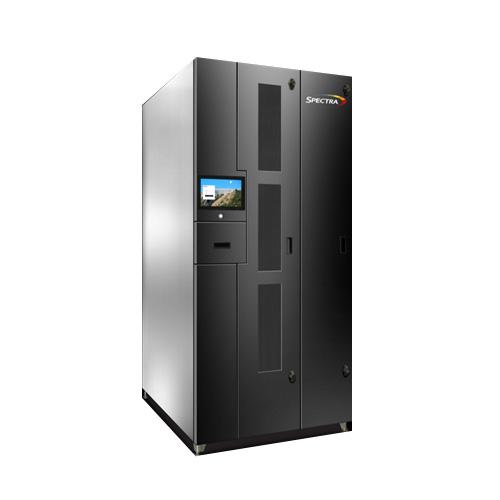

The Spectra Cube Tape Library expands to 50 PB using LTO-10 technology.

Drive type: LTO-10, LTO-9, LTO-8, LTO-7, LTO-6

Capacity:
50.1 PB native capacity using LTO-10
125.3 PB compressed 2.5:1, maximum using LTO-10

Transfer rate: 32.4 TB per hour (81 TB per hour compressed), maximum using LTO-10

Number of cartridge slots: 1,670 LTO cartridge slots

Maximum drives per enclosure: 30 Half Height, 16 Full Height, or a combination of FH and HH

Host interface: LTO-10 - 32 Gb Fibre Channel or 12 Gb SAS

Encryption capability: Built-in BlueScale Standard and Professional Encryption, Hardware-Based Encryption through Spectra KMIP, ESKM, and SKLM

Form factor: Single, free-standing frame

Warranty: 1-year parts, 1-year labor, 1-year onsite support coverage.

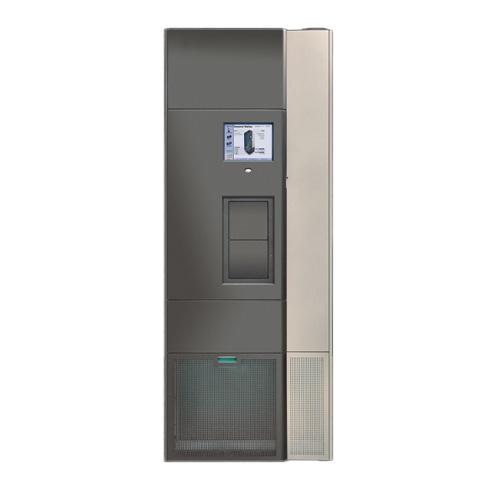

• Support for full-height LTO-10 tape drives
• Spectra OSW-2400 Optical SAS switch

Drive type: LTO-10, LTO-9, LTO-8, LTO-7, LTO-6

Capacity: 751.1 PB compressed 2.5:1, maximum using LTO-10

Transfer rate: 400 MB/s, maximum using LTO-10

Number of cartridge slots: 10,020 for LTO

Maximum drives per enclosure: 120 LTO tape drives

Host interface: LTO-10 32 Gb Fibre Channel or 12 Gb SAS

Encryption capability: Hardware-based encryption through Enterprise Secure Key Manager (ESKM), BlueScale Professional Encryption, and Spectra Security Key Lifecycle Manager (SKLM)

Form factor: Free-standing frame (maximum 8)

Warranty: 1-year parts, 1-year labor, 1-year onsite support coverage.

Weight: 372 kg – main frame (821 lb – main frame)

Dimensions
Width: 74 cm; Height 42U (Width: 29 inch; Height 42U)

• Brand : HP
• Item Height : 28 Millimeters
• Item Width : 11.4 Centimeters
• Item Weight : 99.8 g
• Product Dimensions : 11.2 x 11.4 x 2.8 cm
• Item model number : C7976A
• Voltage : 3.5 Volts

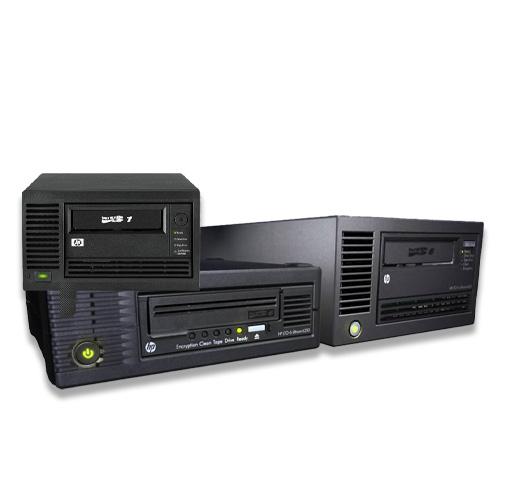

• Device Type: Tape drive - LTO Ultrium
• Enclosure Type: External
• Key Feature: Encryption
• Interface: 1 x SAS-2 - 26 pin 4x Shielded Mini MultiLane SAS (SFF-8088)
• Drive Type: LTO Ultrium 6
• Form factor: Half-Height
• Storage Capacity : LTO Ultrium (2.5 TB / 6.25 TB)
• 3 Years Warranty

• Product Description : HPE Modular Smart Array 1040 Dual Controller LFF Storage - hard drive array
• Device Type : Hard drive array
• Enclosure Type : Rack-mountable - 2U
• Max Supported Capacity : 48 TB
• Interface : iSCSI (1 GbE)
• Maximum LUNs : 512
• Storage Controller : 2 x RAID (SAS 6Gb/s) - RAID 0, 1, 3, 5, 6, 10, 50
• Hard Drive : No HDD
• OS Required : Red Hat Linux, SuSE Linux Enterprise Server, Microsoft Windows Server 2008 SP2, Microsoft Windows Server 2012
• Power : AC 120/230 V - 50/60 Hz
• Power Redundancy : Yes
• Dimensions : (WxDxH)48.26 cm x 57.2 cm x 8.9 cm
• Manufacturer Warranty : 3 years warranty

• Capacity : Max 43TB (24 x 1.8TB SFF SAS HDD)
• Controller Cache : 6GB/controller
• Total LUNs : 512 - maximum LUN size: 140TB
• Host Interconnect : 2 x 8Gb Fibre Channel ports per controller
• Support RAID levels : 0,1, 3, 5, 6, 10, 50.
• Disk Enclosures : (Optional) Maximum 3
• Maximum Host Supported : 64 in v2 UI - 512 in v3 UI
• Standard Software : Snapshots (64)
• Optional Software : Remote Snap (linear storage only) Max Snapshot (512)
• OS Support : Microsoft Windows Server 2012, Microsoft Windows Server 2008 R2, Vmware, HP-UX, Red Hat Linux, SuSE SLES
• Warranty : Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support

• Device Type: Tape drive - LTO Ultrium
• Enclosure Type: External
• Key Feature: Encryption
• Interface: 1 x SAS-2 - 26 pin 4x Shielded Mini MultiLane SAS (SFF-8088)
• Drive Type: LTO Ultrium 6
• Form factor: Half-Height
• Storage Capacity : LTO Ultrium (2.5 TB / 6.25 TB)
• 3 Years Warranty
