• Enterprise-class connectivity with support for ACLs, robust QoS, and common protocols such as static and Access OSPF routing.
• Up to 384 ports of scalability with 8-member VSF stacking. 24 and 48-port fixed and modular switches can stack together with easy to deploy through the CX Mobile app.
• Models include modular switches with 1/10 GbE uplinks, LRM, and MACSec 256, fixed switches with either 1/10 GbE SFP+ or 1 GbE SFP uplinks, and options that support 30W to 60W of PoE per port.
  Intelligent monitoring and visibility via HPE Aruba Networking CX Network Analytics Engine. HPE Aruba Networking Switch Multi-Edit Software support for automation, configuration and verification.
• Dynamic Segmentation enables secure access for users and IoT.
• Flexible, modular switch models support hot-swappable, redundant power supplies and fans for enhanced resiliency.

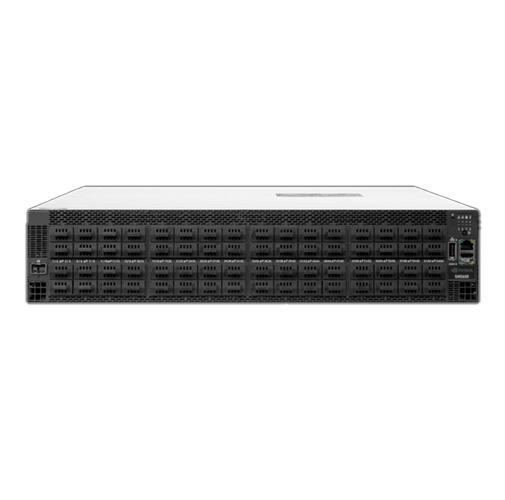

Spectrum-X Ethernet solution including SN5600 and SN2201 from NVIDIA

Reverse airflow (connector to power) InfiniBand (IB) Quantum-2 switch

Warranty: Switches carry a 3-year warranty, on-site, next business day response; cables carry a 1-year warranty, parts exchange.

Port configurations: 64-ports of 800 Gbps, 128-ports of 400 Gbps

Protocol supported: Ethernet

Technology: NVIDIA Spectrum-X

Connector type: OSFP ports; passive or active copper or optical module with fiber cables

Server type supported: HPE ProLiant XL / DL and HPE Cray servers using Ethernet technology;

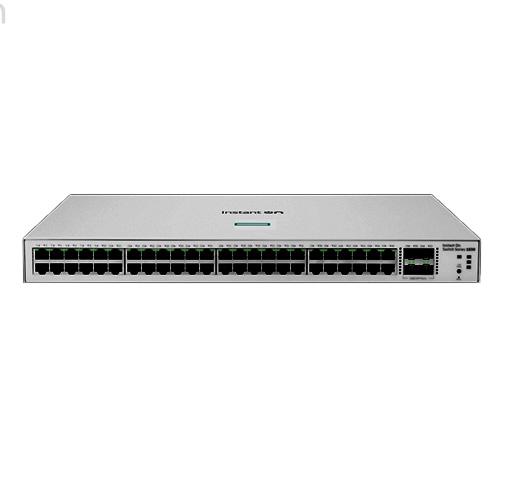

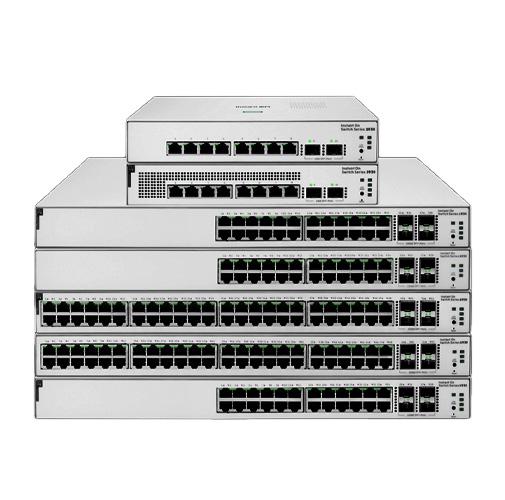

• Seven advanced smart managed Layer 2+ Gigabit switches for high-performance connectivity.
• Non-PoE and Class 4 PoE (i.e. PoE+) 8-, 24- and 48-port models for deployment flexibility.
• 1 G/10 G SFP+ ports on 24-and 48-port models for fiber connectivity.
• HPE Networking Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely.
• Option to manage your switches through local web GUI.

• High-performance modular Layer 3 switches with BGP, EVPN, VXLAN, VRF, and OSPF with robust security, MACsec encryption, and QoS while delivering up to 28 Tbps in non-blockling bandwidth.
• High availability with industry-leading VSX and redundant power supplies and fans.
• Full density HPE Smart Rate (1/2.5/5GbE) multi-gigabit, 60W PoE, and SFP+ modules.
• High-speed, non-blocking 1GbE, 10 GbE, 25 GbE, 40 GbE, and 100 GbE with intelligent monitoring, visibility and remediation with the Network Analytics Engine
• Manage via single pane of glass with HPE Aruba Networking Central across wired, wireless, and WAN.
• Dynamic Segmentation enables enhanced security and simple access for users and IoT.

• HPE FlexFabric Network Analytics solution provides network visibility and all information to run the network at its optimal performance.
• VXLAN Layer 2 and Layer 3 gateway support.
• Pre-configured switch bundles for deployment in the campus aggregation and core.
• Comware 7 advanced modular operating system designed for high availability.
• IRF supports of up to nine switches simplifies management by up to 88%.
• EVPN, OpenFlow and SDN automate manual tasks and speed service delivery.

• Unmanaged Layer 2 Gigabit Ethernet switch series ready to deploy in 5-, 8-, 16-, 24-and 26-port non-PoE and PoE models.
• No configuration or management needed.
• Plug-and-play with fully automated functions and zero ongoing maintenance.
• Up to 124W of PoE to power APs, IP Phones, and other IoT devices.
• Fan-less design for silent deployment in office spaces.

• Simplify network management by stacking up to four Instant On 1960 switches and managing them through one single IP address. Stacking supported via local and cloud-managed stacking modes.
• Smart-managed layer 2+ Ethernet access switch series ready to deploy in 12-port, 24-port, and 48-port for non-PoE and PoE (supports Class 4 and Class 6 PoE) models.
• The Networking Instant On 1960 aggregation switches comes with twelve 10 GBase-T and four SFP+ ports, providing 10 G connectivity to servers, network storage devices and access switches alike.
• For environments with heavy bandwidth needs, 10 GBase-T and SFP+ uplink ports deliver lightning-fast network speeds and nearly eliminates traffic bottlenecks.
• HPE Networking Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely.

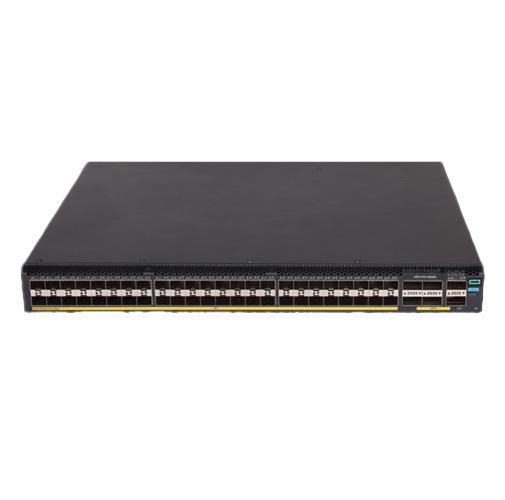

• Improved performance and scale: supports up to 396 Gpbs bandwidth, 9 member switch stacking, 32K MAC table, improved ARP, ACL, IPv4/v6 unicast and multicast scale.
• High availability: Hot swappable dual power supplies and dual fans, mLAG for link level aggregation and redundancy.
• 6 built-in 10/25 G uplink ports offers competitive platform TCO.
• Comprehensive L3 routing and MPLS features, IPv4/v6 support, L3 multicast support.
• Enhanced security: Trusted Platform Module (TPM) and secure boot, support industry-standard MACsec 256 encryption for end-to-end data link layer security on all ports.
• Standard CLI and Smart Management Center (SmartMC) embedded and ready to use, delivering network visibility, management, and operations at no additional cost.

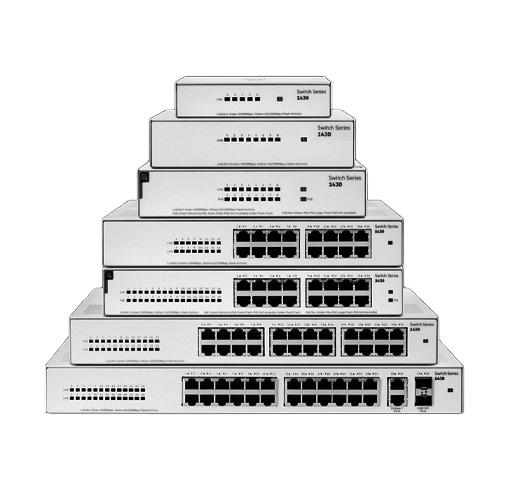

• Smart-managed Layer 2 Ethernet switch series ready to deploy in 8, 24-, and 48-port for non-PoE and PoE models.
• Compact and fan-less 8-port PoE/ non-PoE models and 24-port non-PoE model for acoustically sensitive environments.
• HPE Networking Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely.
• Two and four dedicated 1G SFP fiber ports on 24- and 48-port models respectively to eliminate traffic bottlenecks across your network.
• Option to manage your switches through local web GUI.

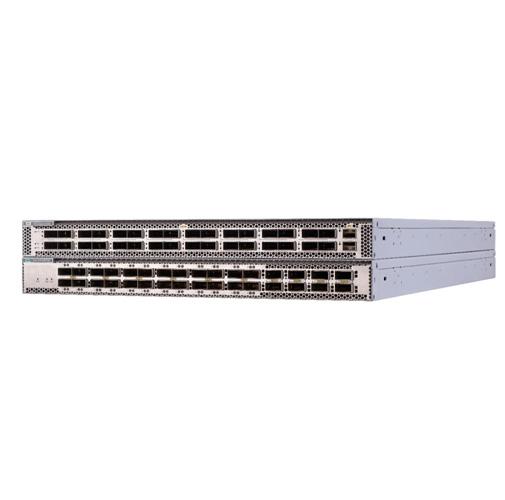

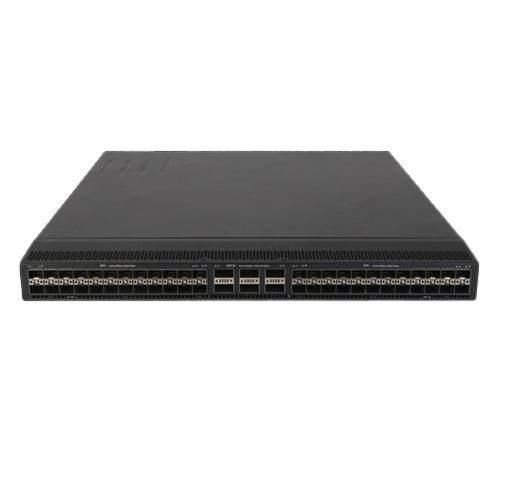

• High-density 100GbE/40GbE/25GbE/10GbE spine/top-of-rack (ToR) connectivity and Cut-through switching with low-latency and wire speed performance.
• New 32G/16G support for storage networking and ROCE V1/V2 for RDMA High-Performance computing.VXLAN, EVPN, and MPLS support for virtualized environments.
• Greater flexibility with two/four slot options for varying use cases such as MACsec 256-bit encryption, high-performance DC leaf, storage networking and NVMe storage.
• IPv4 and IPv6 support with full L2/L3 features and PTP 1588V2 for Boundary Clock, Transparent Clock, End to End/Peer to Peer Transparent Clock.
• HPE Aruba Networking IMC Orchestrator and Analyzer for enhanced network operations with orchestration, automation, and analytical capabilities.
• New made in USA TAA-compliant SKUs offer heightened security via manual and automated source code analysis to
• address common programming issues, easing concerns about "made in China" products.

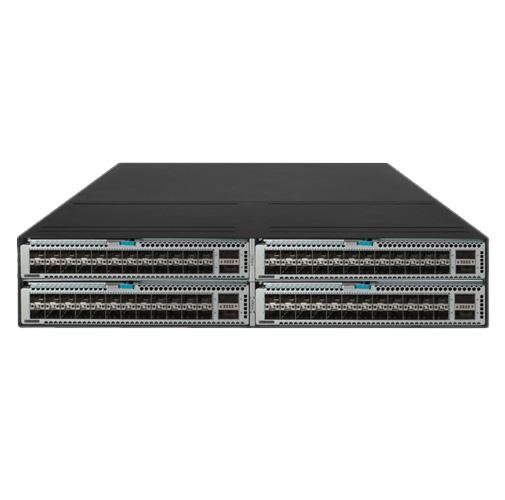

Power consumption: 650W maximum

Heat dissipation:
Maximum heat dissipation:
- JQ074A/S3K87A: 1381 BTU/hr (1458 kJ/hr)
- JQ075A/S3K88A: 1392 BTU/hr (1458 kJ/hr)
- JQ076A/S3K89A: 2348 BTU/hr (2478 kJ/hr)
- JQ077A/S3K90A: 1283 BTU/hr (1458 kJ/hr)

Notes: Maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.

Input voltage: 100 VAC to 240 VAC V rated, 90 VAC to 264 VAC max;
–40 VDC to –60 VDC rated –40 VDC to –72 VDC max

Ports:
I/O ports and slots:
- JQ074A/S3K87A: 48 x 25 Gb SFP28 ports, 8 x 100 Gb QSFP28 ports, 2 x 1 Gb SFP ports. Supports 48 x 10/25GbE and 8 x 100GbE fixed ports, or up to 80 x 10GbE ports when using splitter cables;
- JQ075A/S3K88A: 2 module slots, 2 x 100 Gb QSFP28 ports. Supports up to a maximum of 48 x 10/25GbE and 4 x 100GbE ports, or up to 16 x 100GbE ports from modules;
- JQ077A/S3K90A: 32 x 100 Gb QSFP28 ports, 2 x 1 Gb SFP ports;
- JQ076A/S3K89A: 4 module slots, 2 x 1 Gb SFP ports. Supports up to a maximum of 96 x 10/25GbE and 8 x 100GbE ports, or up to 32 x 100GbE ports;

Additional ports and slots:
- 1 x console port;
- 1 x mini USB port;
- 1 x USB port;
- 2 x out-of-band management ports (one fiber port and one copper port)

Latency: < 1 μs (64-byte packets)

Switching capacity: 6.4 Tbps, maximum, depending on model and configuration

Stacking capabilities: Up to 10 HPE 5945 switches

Throughput: Up to 2024 Mpps

Memory and processor: 1 GB flash Packet buffer size: 16 MB, 4 GB SDRAM or 32 MB 8 GB SDRAM

Power supply name: 2 power supply slots 1 minimum power supply required (ordered separately)

Management features: IMC, CLI, out-of-band management, SNMP Manager, Telnet, FTP

Warranty: 1-year

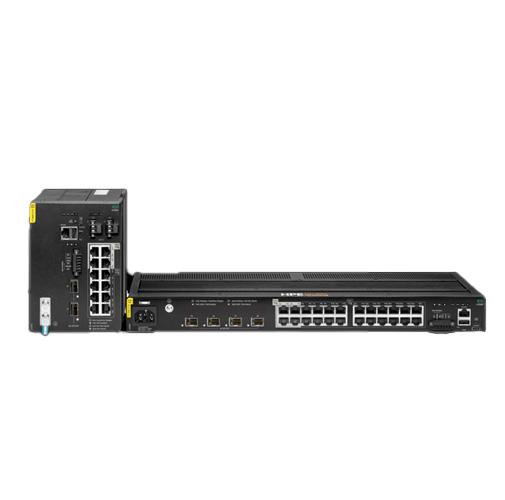

• Ruggedized Layer 2 switch series provides high performance, fully manageable, and reliable, Ethernet connectivity to IoT, access points, and user devices in harsh environments.
• Versatile form factors with fast 1/10 GbE uplinks deliver both 30W and 60W PoE to improve IoT power.
• Layer 2 feature set with static routing and no switch software licensing required.
  HPE Aruba Networking Dynamic Segmentation enables enhanced security and simplified access for users and IoT.
• Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software.

Stacking capabilities: No stacking capability

Memory and processor:
CPU: Dual Core Arm® Cortex A9 @ 1016 MHz
Memory and flash: 4 GB DDR3 32 GB eMMC

Operating temperature:
-40°C to 60°C, 0m/s (-40°F to 140°F, 0 LFM)
-40°C to 70°C, 0.2m/s (-40°F to 158°F, 40 LFM)
-34°C to 75°C, 1m/s (-29.2°F to 167°F, 200 LFM)

Management features: Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software.

Warranty: 5-year warranty

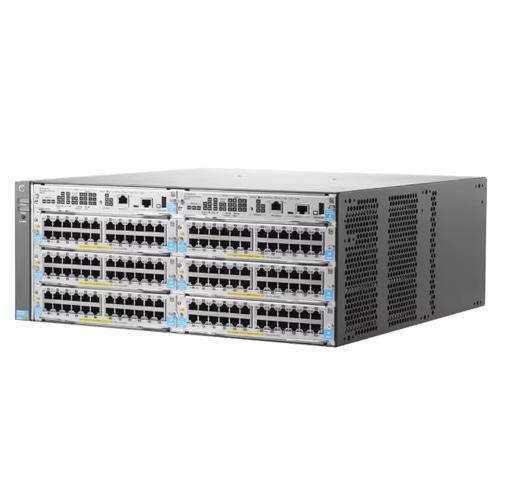

• Powerful Layer 3 modular switch series with VSF stacking, low latency, resiliency and Dynamic Segmentation for a better mobile-first campus experience.
• HPE Aruba Networking ClearPass Policy Manager, HPE Aruba Networking AirWave and HPE Aruba Networking Central support.
• HPE Smart Rate for high speed multi gigabit bandwidth and PoE+ power.
• Scalable line rate 40 GbE for wireless traffic aggregation.
• Fast software upgrade for 5400R zI2 series VSF stack minimizes downtime.
• Ready for the software defined network with REST APIs and OpenFlow support.

Ports: Up to (12) open module slots, maximum. Supports a maximum of (288) 10/100/1000 ports or (288) SFP ports or (96) SFP+ ports or (96) HPE Smart Rate Multi-Gigabit or (24) 40 GbE ports, or a combination. Pre-configured models, some with PoE/PoE+, can support 10/100/1000 GbE, 10 GbE and 40GbE.

Latency: 1000 Mb Latency: < 2.8 µs; 10 Gbps Latency: < 1.8 µs; 40 Gbps Latency: < 1.5 µs

Memory and processor:
Depend on the model:
Dual Arm Cortex A9 at 1 GHz; Packet buffer size: 13.5 MB internal Arm 11 at 450 MHz; Packet buffer size: 18 MB internal.
Dual Arm Cortex A9 at 1; Packet buffer size: 13.5 MB internal Arm 11 at 550 MHz; Packet buffer size: 18 MB internal.
Dual Arm Cortex A9 at 1 GHz; Packet buffer size: 13.5 MB internal Freescale P2020 dual core at 1.2 GHz, 16 MB flash, 1 GB SD Card, 4 GB DDR3 SODIMM.

PoE capability:
PoE allocations supports multiple methods (automatic, IEEE 802.3af class, LLDP?MED, or user?specified) to allocate PoE power for more efficient energy savings on select models.

Management features:
HPE Aruba Networking Management Software
HPE Aruba Networking Central
HPE Intelligent Management Center Basic Software Platform (IMC)
Command-line interface
Web browser
Configuration menu
Out-of-band management (RJ-45 Ethernet)
Out-of-band management (serial RS-232C or micro USB)
SNMP manager

Warranty: Limited lifetime warranty.

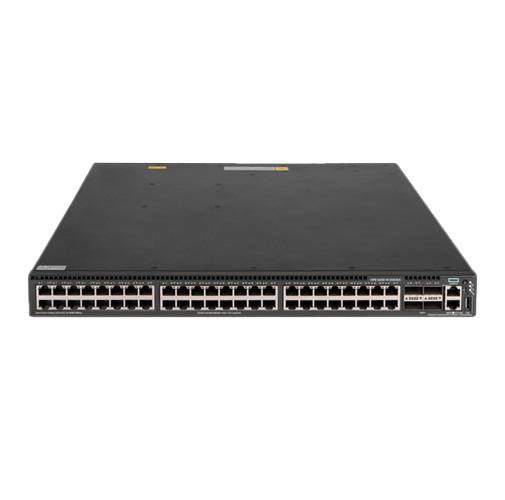

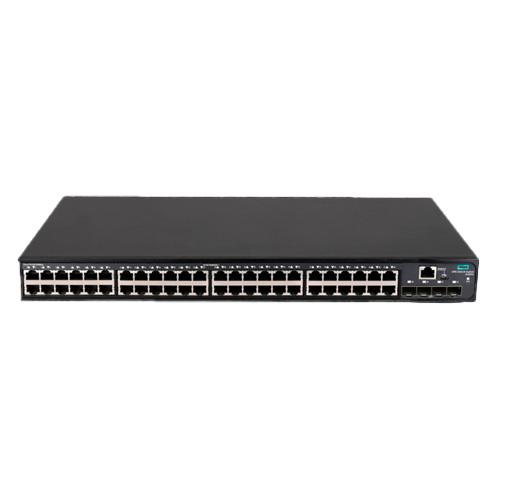

• Gigabit Ethernet access switch with intermediate L3 routing features such as OSPF V2 / OSPF V3 / VRRP / VRRPE / Routed Ports, RIP, 10GbE uplinks, and PoE+ models for voice, video, and wireless.
• Higher port switching capacity, forwarding performance and port line rate granularity, 2X dynamic ARP, 2X IPv6 unicast routing, and introduction of IGMP proxy for improved performance.
• DRNI combines multiple physical switches into one virtual distributed-relay (DR) system for doubling aggregate bandwidth, faster forwarding, resiliency, and high availability.
• Intelligent Network Quality Analyzer (iNQA) measures network packet loss performance and provides visibility into real-time application performance and health.
• Industry standard AES 256 MACsec support, higher MAC port binding and link group capacity for improved end-to-end network security. 2-port AES256 MACsec module R9L65A has been introduced.
• Smart Management Center (SmartMC) provides centralized network management and maintains dispersed network edge devices at no additional cost.

Power consumption: 95W (dual DC), 96W (dual DC), 928W (dual AC), 1742W (dual AC), depending on the model

Input voltage: 100VAC–240VAC, 48 to -60VDC Maximum, depending on model and configuration

Ports: 48 10/100/1000 ports, maximum; or 24 10/100/1000 Mbps SFP and 8 dual-personality 100/1000 ports 4 SFP+ fixed 1000/10000 SFP+ ports, maximum; 2 1/10GBASE-T ports available on select models PoE+ available, depending on model

Latency: < 5 microseconds (64-byte packets)

Switching capacity: 288 Gbps and 336 Gbps depending on the model

Stacking capabilities: IRF 9 switches

Throughput: 180 Mpps

Memory and processor: 2 GB SDRAM; Packet buffer size: 4 MB, 512 MB flash

Power supply name:
2 power supply slots
1 minimum power supply required

PoE capability: 720W (PoE power), 1440W (PoE power) depending on the model

Management features: HPE IMC; Smart MC, command-line interface; web browser; SNMP manager

Warranty: Limited lifetime warranty. See the warranty duration guide.

Weight: From 3.8 kg to 5.8 kg depending on the model (From 8.49 lb to 12.79 lb depending on the model)

Dimensions: 4.37 x 44 x 36 cm and 4.37 x 44 x 46 cm depending on the model (1.72 x 17.32 x 14.17 in and 1.72 x 17.32 x 18.11 in depending on the model)

• High-performance campus core and aggregation switch with 2.5 Tbps switching capacity.
• HPE Aruba Networking CX Switch Operating System (AOS-CX) automates using REST APIs and Python scripts.
• Monitor and troubleshoot with HPE Aruba Networking Network Analytics Engine (NAE).
• High availability, virtualization and simplicity with HPE Aruba Networking Virtual Switching Extension (VSX).
• Compact 1U switches with 10 GbE (SFP/SFP+ or 10 GBASE-T) and 40 GbE connectivity.
• Advanced Layer 2/3 feature set includes BGP, OSPF, VRF and IPv6.

Power consumption: 357W Max Power depending on the model

Input voltage: 100-127 and 200-240 with either 50 or 60Hz VAC

Switching capacity: 2.5 Tbps

Memory and processor: 16 GB RAM, 64 GB SSD, and 8 GB Flash

Power supply name: Field?replaceable, hot?swappable, and up to 2 power supplies. Bundles (JL479A, JL579A, JL581A) include 2 power supplies.

Management features:
SNMP
RJ45 for Serial Console
USB?Type A for file management only RJ45
Ethernet for OOBM

Warranty: Limited lifetime warranty.

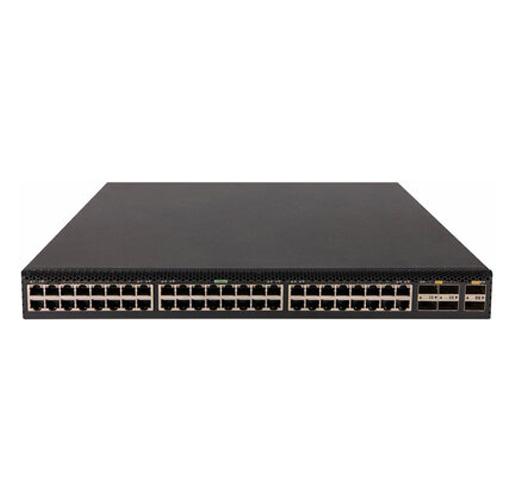

• High-density, high-performance top-of-rack switch with 48 x 1/10 GbE Base-T ports and 6 x 40 or 100 GbE QSFP28 uplink ports.
• HPE FlexFabric Network Analytics solution supporting application telemetry and real time microburst congestion detection.
• HPE IMC Orchestrator and Analyzer offers enhanced network operations and centralized management with orchestration, automation, and analytical capabilities.
• Virtual Extensible LAN (VXLAN) supports greater scalability of Layer 2 and L3 overlay service and multicast.
• Industry-standard Distributed Resilient Network Interconnection (DRNI) enables device level link aggregation for simpler network topology and ease of operation.
• HPE Intelligent Resilient Fabric (IRF) technology allows greater resilience and scalability with IRF stacking.

Power consumption: 320W maximum

Heat dissipation: 887 BTU/hr

Input voltage: 100VAC to 240VAC, or –40VDC to –60VDC, depending on installed power supplies

Ports:
48 x 1/10GBASE-T ports
6 x QSFP28 100GbE ports

Latency: < 1 µs (64-byte packets)

Routing/switching capacity: 2.16 Tbps, maximum

Stacking capabilities: Up to 10 HPE FlexFabric 5944 switches

Throughput: Up to 1001.7 Mpps

Memory and processor: 4 GB flash; 8 GB SDRAM

Management features: In-band & out-of-band management; CLI, Telnet/SSHv2 / FTP / HPE Intelligent Management Console (IMC)

Warranty: 1-year Warranty

Weight: 10 kg (22.05 lb)

Dimensions: 44 x 440 x 460 mm (1.72 x 17.32 x 18.11 in)

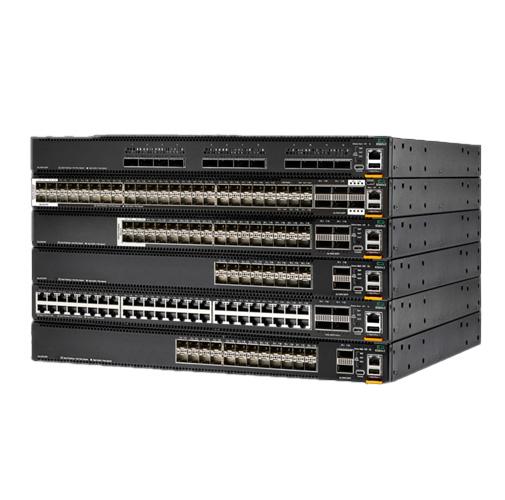

• 48-port 1/10/25 G with 4 MACsec, 6-port of 40/100 G with 2 MACsec. MACsec secured connectivity over untrusted domains.
• High-performance 4.8 Tbps and 2,678 Mpps. 50G support on 8360-48Y6C, 32Y4C and 16Y2C switches. Addition of HPE Smart Rate (1/2.5/5/10 G) ports on the 836048XT4C
• Intelligent monitoring and visibility delivered by the HPE Aruba Networking Network Analytics Engine (NAE)
• High availability with industry-leading VSX redundancy and redundant power supplies and fans.

Power consumption: From 110W to 230W (Idle Power), from 350W to 725W (Max Power) depends on the model

Heat dissipation: From 1,109 to 1,450 BTU/hr depends on the model

Ports:
Depends on the model:
12-port of 40 GbE/100 GbE (QSFP+/QSFP28) (optional 4x10G/25G breakout cables supported);
24-port of 1 GbE/10 GbE (SFP/SFP+) 2-port of 40 GbE/100 GbE (QSFP+/QSFP28) (optional 1 GBASE-T SFP and 10 GBASE-T SFP+ transceivers and 4x10G/25G breakout cables supported);
48-port of 100M/1GbE/10GBASE-T 4-port of 40 GbE/100 GbE (QSFP+/QSFP28)

Switch fabric speed: From 1.2 Tbps to 4.8 Tbps depends on the model

Routing capabilities: Static (IPv4/IPv6): RIPv2; RIPng; OSPF; OSPFv3; BGP-4; MP-BGP with IPv6; PBR; ECMP; GRE, MPLS

Memory and processor: CPU: 1.8 GHz 4-core 64-bit; RAM: 16 GB; Flash/Storage: 32 GB; Packet Buffer: 32 MB

Power supply name: 2 field-replaceable and hot-swappable power supplies depends on the model

Management features: RJ45 serial and USB-C console; RJ45 Ethernet port; USB-Type A

Warranty: Limited lifetime warranty. See the warranty duration.

Weight: From 7.71 kg to 10.73 kg depends on the model (From 17.00 lb to 23.65 lb depends on the model)

Dimensions: From 4.40 x 4.42 x 40.6 cm to 4.40 x 4.42 x 55.9 cm (From 1.73 x 17.4 x 16.0 in to 1.73 x 17.4 x 22.0 in)

• The 2930M Series is a family of layer 3 stackable switches that are easy to deploy and manage, providing scale and modularity for enterprise, SMB and branch access networks.
• Simplify with Zero Touch Provisioning and cloud-based HPE Aruba Networking Central support.
• Scale with modular 10 chassis stacking and up to 1440W PoE.
• Modular 10 GbE and 40 GbE uplinks and HPE Smart Rate multi-gigabit support.
• Models with 24 ports of HPE Smart Rate with IEEE 802.3bz.
• High Power PoE models deliver up to 60W of PoE per port.

Power consumption: 860W (maximum), depending on model and configuration

Heat dissipation: 200 BTU/hr 216 kJ/hr (maximum), depending on model and configuration

Input voltage: 110-240 VAC, depending on power supply

Ports:(20 or 44) 10/100/1000 ports, (4) Dual Personality 10/100/1000 or 100/1000 Mbps SFP Ports. PoE+ on selected models, (1) uplink module slot, (1) stacking module

Latency:
1000 Mb Latency: < 3.1 µs
10 Gbps Latency: < 3.4 µs

Switching capacity: 320 Gbps maximum, depending on model and configuration

Throughput: 112 Mpps maximum, depending on model and configuration

Memory and processor:
Dual Core ARM Coretex A9 @ 1016 MHz
1 GB DDR3 SDRAM
Packet buffer size: 12.38 MB and 4.5 MB Ingress, 7.785 Egress
4 GB eMMC

PoE capability: Up to 1440W of PoE Power

Management features:
HPE Aruba Networking Management Software (AirWave)
HPE Aruba Networking Central
IMC - Intelligent Management Center
Command-line interface
Web browser
Configuration menu
SNMP manager
Telnet
RMON1
FTP
Out-of-band management (serial RS-232C or micro USB)

Warranty: Limited lifetime warranty.

• Improved hardware specification and scale: faster CPU, increased memory, up to 744 Gpbs bandwidth, 128K MAC table, improved ARP, ACL, IPv4/v6 unicast and multicast and MPLS LSP scale.
• Diverse I/O options and upgraded uplinks: Flexible I/O 36 and 48 port copper, fiber and combo GE ports downlink, and expanded uplink ports 8x25G and 2x100G via the expansion model.
• Enhanced security with all ports MacSec AES-256.
• L3 multicast support.
• High Densify PoE++: up to 48 port 90W PoE++/port.
• Support containerizaton for application hosting

Power consumption:
Idle: Single AC: 29 - 54W, Dual AC: 36-66W; Single DC: 34-35W; dual DC: 39 - 41W, selected models
Full load: Single AC: 90 - 1705W, Dual AC: 96-3201W; Single DC: 90-135W; dual DC: 95-140W, selected models

Input voltage: AC: 90V to 290V, and DC: -36V to -72V on selected models

Latency: GE: < 5 µs, 10GE: < 3 µs, 40GE: <1.2µs

Routing capabilities: MAC table: 128K IPv4/IPv6 routes: 266K/133K ARP table: 80K ACL (Ingress/Egress): 4864/512

Switching capacity: 696 Gbps - 744 Gbps

Stacking capabilities: 9 member IRF

Throughput: 518 Mpps - 554 Mpps

Memory and processor: CPU: ARM 2GHz Quard core
4GB SDRAM, 4GB Flash, 8M Packet buffer

Management features: IMC - Intelligent Management Center; Command-line interface; SNMP manager; SmartMC Web GUI

Warranty: Limited lifetime warranty. See the warranty duration guide.

Ports: 48x 100/1000Base-X SFP ports; or 32x 10/100/1000Base-T ports and 4x 1G/10GBase-X SFP+ ports; or 48x 10/100/1000Base-T ports; or 32x 10/100/1000Base-T PoE++ ports and 4x 1G/10GBase-X SFP+ ports; or 48x 10/100/1000Base-T PoE++ ports Plus 4x 10G/25GBase-X SFP28 ports, selected models

• High-density, high-performance Top-of-Rack (ToR) switch that bridges the gap between legacy and modern networks with 48 x 10/100/1000Mbps RJ-45 ports, 4 x 1/10 SFP+ ports, and 2 x 40 QFSP+ ports.
• HPE Intelligent Resilient Fabric (IRF) technology provides greater resilience and scalability.
• Cut-through with low-latency and varying wire speed performance.
• Rich feature sets with IPv4 and IPv6 support Layer 2, Layer 3, and QoS /ACL features.
• OpenFlow and NETCONF for automating manual tasks and improving service delivery.
• Dual, redundant hot-pluggable power supplies with reversible airflow help reduce power consumption.

Power consumption: Up to 175W, depending on the model

Heat dissipation: UP to 597 BTU/hr, depending on the model

Input voltage: -48 to -60 VDC, depending on the model

Ports:(48) 10/100/1000, 1000/10000 SFP+, or 1/10GbE RJ-45 ports
(4) QSFP+ 40-GbE ports, maximum
(4) additional 1000/10000 SFP+ ports on selected models

Latency:<1.2µs refer to QuickSpecs for model details

Routing/switching capacity: 336Gbps

Switching capacity: 336Gbps

Stacking capabilities:
IRF
9 switches

Throughput:
250Mpps
Maximum, depending on model and configuration

Memory and processor:
512 MB flash
Packet buffer size: 9 MB
2 GB SDRAM

Management features:
IMC - Intelligent Management Center
Command-line interface
Out-of-band management
SNMP manager
Telnet
FTP

Warranty: Limited Lifetime Warranty

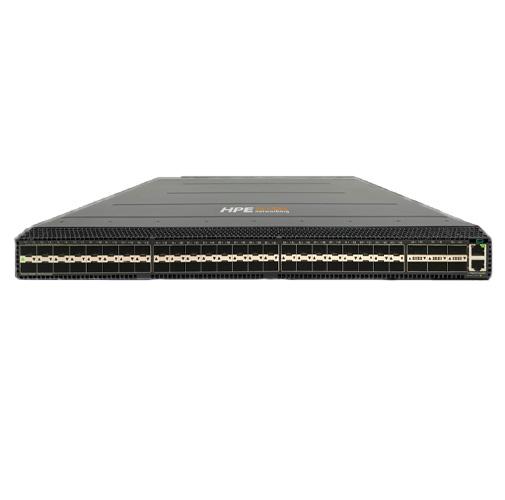

• A category of distributed services switch with embedded programmable DPUs overcoming legacy network and security design limitations
• CX 10000 offer 3.2 Tbps of switching capacity supporting 1/10/25 GbE
  CX 10040 offer 8 Tbps of switching capacity supporting 32x100G, 6x400G connectivity
• Unified network and security policy through HPE Aruba Networking Fabric Composer
• Security ecosystem integration with third-party vendors
• Leverages existing AOS-CX Cloud Native Switching
• Distributed stateful segmentation, east–west firewalling, NAT, encryption, and telemetry services — all delivered inline

Power consumption:
CX 10000 - 753W (maximum), 550W (typical), 400W (idle)
CX 10040 - 1700W (maximum), 1200W (typical)

Heat dissipation: 1,876 BTU/hr

Input voltage: 100-240 VAC

Ports: CX 10000 - 48 SFP28; 6 QSFP28
CX 10040 - 32x100 GbE QSFP, 6x400 GbE QSFP-DD, 2x10 GbE SFP+.

Latency:<1 µs (without redirect)
<5 µs (with redirect)

Routing capabilities:
Static (IPv4/IPv6): RIPv2; RIPng; OSPF; OSPFv3; BGP-4; MP-BGP with IPv6; PBR; ECMP; GRE

Switching capacity: CX 10000 - 3.2 Tbps full-duplex
CX 10040 - 8 Tbps full-duplex

Stacking capabilities: Yes

Throughput: CX 10000 provides 3.2 Tbps for bidirectional switching and 2000 Mpps for forwarding
CX 10040 provides 8 Tbps for bidirectional switching

Memory and processor:
CX 10000 - CPU: 2.9 GHz, 32 GB 92x16 GB) SODIMM, 64 GB SSD, 32 MB SPI Flash (BIOS), 64 MB SPI Flash (SVOS); Packet Buffer - 32 MB; DPU: 2 x Pensando Elba 3 GHz

CX 10040 - AMD V3C48 as main system CPU, resides on Ryder; 128 GB m.2 SSD, 16 MB SPI Flash, 32 GB x2 SODIMM
Packet Buffer - 82 MB; DPU: 4 x Pensando Elba

Power supply name: CX 10000 - 2x R8R51A (Front-to-Back) or 2x R8R52A (Back-to-Front)
CX 10040 - 2x S4R52A (Front-to-Back) or 2x S4R53A (Back-to-Front)

Operating temperature: CX 10000 - 0°C to 40°C (32°F to 104°F)
CX 10040 - Front-to-Back: 0°C to 40°C (32°F to 104°F); Back-to-Front: 32°F to 104°F (0°C to 40°C)

Management features: CLI; REST API; SNMP; Fabric Composer; Multi-Edit; RJ-45 console Port; USB micro console port; RJ-45 out-of-band management port

Warranty: 1-year warranty. See the warranty duration.

• High-performance 1.76 Tbps of bi-directional switching and 1,309 Mpps of forwarding designed for aggregation in the campus or top-of-rack in data center environments.
• Four different base models, each sold in bundles that support two airflow modes (Front to Back, and Back to Front) with Advanced Layer 2/3 feature set that includes BGP, OSPF, VRF, and IPv6.
• High availability with industry-leading VSX redundancy and redundant power supplies and fans.
• HPE Aruba Networking CX Switch Operating System (AOS-CX) automation and programmability using built-in REST APIs and Python scripts
• Intelligent monitoring and visibility delivered by the HPE Aruba Networking Networks Analytics Engine (NAE)

Power consumption: 120W Idle Power / 500W Max Power depending on the model

Input voltage: 100-127V 7.1A for 100-127 VAC
200-240V 3.4A for 200-240 VAC

Ports: Includes industry-leading line rate ports with 1/10 GbE (SFP/SFP+) and 40/100 GbE (QSFP+/QSFP28) connectivity in a compact 1U form factor. 4x10 Gbps and 4x25 Gbps break out from 40/100 G ports offer advanced flexibility in connectivity and aggregation.

Switching capacity: High-performance 1.76 Tbps and 1,309 Mpps

Memory and processor: Quad Core ARM Cortex A72 @ 1.8 GHz

Power supply name: 2 field-replaceable and hot-swappable power supplies

Operating temperature: Up to 32°F to 113°F (0°C to 45°C) up to 5000 ft depending on the model

Management features: RJ-45 serial and USB-C console; RJ-45 Ethernet port; USB-Type A

Warranty: Limited lifetime warranty

• High-performance with 2,000 Mpps. HPE Aruba Networking designed the data center for core/aggregation in the campus or top-of-rack (ToR) or End of Row (EoR).
• AOS-CX delivers automation and programmability using built-in REST APIs and Python scripts. High availability with industry-leading VSX redundancy, and redundant power supplies and fans.
• Intelligent monitoring, visibility, and remediation with HPE Aruba Networking Network Analytics Engine and dynamic VXLAN for deep segmentation in data center and campus networks with BGP-EVPN.
• Compact 1U switches with 1GbE, 10GbE, 25GbE, 40GbE, and 100GbE connectivity.
  Advanced layer 2/3 feature set includes BGP, OSPF, VRF, VXLAN, and IPv6.
• CX 8325P-32C switch supports PTP (1588v2), Class C (G.8275.1/G.8275.2), Synchronous Ethernet (SyncE, G.8262.1), Global Navigation Satellite System (GNSS) to support Telco Boundary Clock.

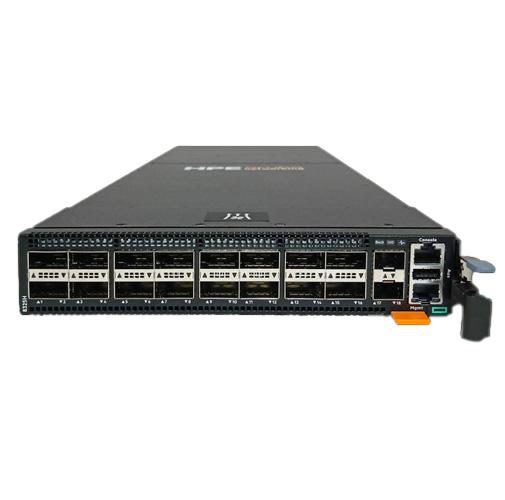

• CX 8325H has two variations:
  • 2.16Tbps half-width fixed switch that supports 18 ports of 1/10/25 and 4 ports of 40/100GbE
  • 4Tbps half-width fixed switch that supports 16 ports of 40/100 GbE

Power consumption: 618W maximum, depending on model

Input voltage: 100 to 240 VAC
-36 to -72 VDC

Ports: (48) 25G SFP28 ports and (8) 100G QSFP28 ports, or (32) 100G QSFP28 ports, maximum depending on model

Switch fabric speed: 6.4 Tbps maximum, depending on model

Stacking capabilities: These switches serve the needs of the next-generation core and aggregation layer, as well as emerging data center requirements at the Top of Rack (ToR) and End of Row (EoR).

Throughput: For CX 8325 and CX 8325P - 2000 Mpps maximum, depending on model

For CX 8325H 18Y4C - 1000 Mpps
For CX 8325H 16C - 2000 Mpps

Memory and processor:
For CX 8325 modes:
CPU: 2.2 GHz
Memory: Drive and Flash 16 GB RAM, 64 GB SSD, 8 GB Flash
Packet Buffer: 32 MB

For CX 8325H modes:
CPU: AMD x86 8 Core
Memory: 32 GB, 128 GB SSD
Packet Buffer: 32 MB

Power supply name: Field-replaceable, hot-swappable, and up to 2 power supplies, except CX 8325H models (Fixed).

Management features: Industry-standard CLI with a hierarchical structure;
SNMP v2c/v3;
sFlow (RFC 3176);
Remote monitoring (RMON);
Precision Time Protocol (PTP Class C (G.8275.1/.2)

Warranty:
- 5-year Warranty (purchased prior to November 1st, 2019)
- Limited Lifetime (purchased after November 1st, 2019)

Weight: (48) 10 kg (32) 10.87 kg ((48) 22.05 lb (32) 23.96 lb)

Dimensions: (48) 4.35 x 43.84 x 53.6 cm (32) 4.395 x 44.25 x 47.3 cm ((48) 1.71 x 17.26 x 21.1 in (32) 1.73 x 17.42 x 18.62 in)

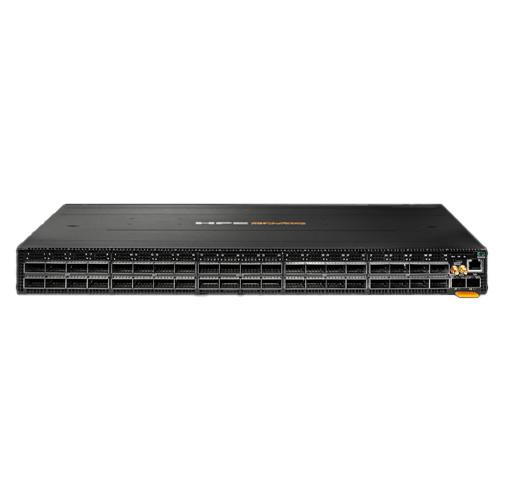

• 25.6Tbps, 1U fixed configuration supporting 32 ports of 100/400GbE. Designed to provide flexible, cost-effective, high-density 10-400GbE for servers, storage, and intra-fabric connectivity.
• Protects enterprises’ investment as they transition server farms from 10GbE and 25GbE to 100GbE/400GbE EVPN-VXLAN spine configurations, with reduced power and a smaller footprint.
• Support large data center pods connecting up to 6,000 x 25G servers or up to 2,000 x 100G servers.
• Support large data center pods and increased density by connecting up to 6,000 x 25G servers or up to 2,000 x 100G servers.
• HPE Aruba Networking Fabric Composer greatly simplifies the automation, orchestration, and end-end visibility of the network fabric underlay and virtualized overlay.
• Introducing new HPE Aruba Networking 9300S 32p QSFP28 100G 8p QSFP-DD 400G Back-to-Front and Front-to-Back Bundles along with new compatible transceivers and power supply options.

Power consumption: Max: 600W or 615W, Idle: 210W or 221W depending on the model

Heat dissipation: 4,435 BTU/hr (Max)

Input voltage: 100-127 / 220-240 VAC 220-240V required to support 8-32 port production configuration

Ports: SNMP
RJ-45 serial
RJ-45 OOBM Ethernet Port
Micro USB

Routing capabilities: Static (IPv4/IPv6); RIPv2; RIPng; OSPF; OSPFv3; BGP-4; MP-BGP with IPv6; PBR; ECMP; EVPN-VXLAN

Switching capacity: 25.6Tbps

Throughput: 5Bpps

Memory and processor: 32GB RAM, 1.7GHz Processor,128GB m.2 SSD, 4GB mSATA, 128MB SPI Flash, 16GB x2 SODIMM

Power supply name: Includes 2 FB Power Supplies (R8Z97A) with no additional open Power Supply slots, warning: 200-225VAC use only

Operating temperature: 32°F to 113°F (0°C to 45°C) Max

Management features: SNMP; RJ-45 console Port; Micro USB console port

Warranty: Limited lifetime warranty. See the warranty duration.

Weight: 11.85 kg (26.12 lb)

Dimensions: 4.35 x 43.84 x 59 cm (1.71 x 17.26 x 23.23 in)

• Delivers up to 1,440 Gbps switching capacity for the most demanding applications.
• Low latency, under 1.5 µs 10GbE latency, provides improved throughput and fewer lost packets.
• Provides choices that fit your budget and IT environment by offering different port density and speeds (1/10G) SFP+ or 10BASE-T with 40 and 100GbE high speed uplinks options.
• Affordably priced, with full support for Layer 2, Layer 3, IPv4 and IPv6 networking protocols at no additional cost for these advanced features.
• New made in USA TAA-compliant SKUs offer heightened security via manual and automated source code analysis to address common programming issues, easing concerns about "made in China" products

Power consumption: Idle power: 108W, maximum, depending on model

Ports: 48 SPF, 40 1/10GBASE-T and 8 10GBASE-T, 24 SFP, or 24 1/10GBASE-T ports, depending on model. All models also have 6 QSFP+ or 2 QSFP28 ports.

Switching capacity: 1440 Gbps, maximum, depending on model

Stacking capabilities: 9 FlexFabric 5710 physical switches can be combined into one virtual switch configuration and are managed using a single IP address

Throughput: 1071 Mpps, maximum, depending on model

Memory and processor: 1 GB flash, 4 GB SDRAM, packet buffer size: 12 MB

Management features: HPE IMC, CLI, out-of-band management, SNMP Manager, Telnet, FTP

Warranty: 1-year warranty. See the warranty duration.

• High-performance, high-density, and backward-compatible switch with varied 400/200/100G connectivity options.
• OS Comware v9 offers enhanced software features such as Segment Routing MPLS, SR-V6, PTP/SyncE, egress ACL, egress rate limiting, and others for highly distributed environments.
• Dual, redundant, hot-swappable power supplies maintain a dynamic and highly available network.
• Supports HPE IMC for a consistent network manageability experience while integrating with HPE IMC Orchestrator and Analyzer for data center fabric orchestration, monitoring, and application telemetry.

Power consumption: 830W

Heat dissipation: 4382.65 BTU/h max.

Input voltage:
DC Input Voltage 180V to 320V;
AC Input Voltage 100V to 240V

Ports: 32x400G port OR 24x100G/200G+ 8x400GQDD depending on the model

Latency: <1.2µs

Switching capacity: 12.8 Tbps

Memory and processor: D-1627 @2.9 GHz,16G DDR4, 240G SSD

Operating temperature: 0°C to 40°C (32°F to 104°F)

Management features: HPE IMC; CLI; out-of-band management; SNMP Manager; Telnet; and FTP. Notes: The customer must install a minimum of one power supply, as the device does not come with one. The customer must install six fan kits, as the device does not come with one.

Warranty: Limited lifetime warranty. See the warranty duration.

• Low cost, Gigabit Ethernet access switch for small- to medium-sized organizations with Layer 2 routing, RIP, and PoE+ models for voice, video, and wireless.
• Fanless switch with embedded power supplies offers the advantages of low power consumption, noise-free operation, and reduced heat dissipation.
• MAC address support of up to 16K enables greater scalability, more devices can be added into the network and access policies can be defined per their MAC addresses leading to greater network security.
• HPE Intelligent Resilient Framework (IRF) technology that enables plug-and-play device aggregation and link aggregation of up to 9 devices, enhancing network redundancy and resource utilization.
• SNMP-based centralized network management with HPE Intelligent Management Center for consistent network manageability and CLI, Telnet, and web-based network management for easier device management.
• Includes embedded network management capabilities at no additional cost with Smart Management Centre (SmartMC).

Power consumption: 125W max PSU (30W PoE+ per port)

Ports: 8x10/100/1000BASE-T, 2x1000BASE-X SFP

Latency:< 5 μs

Routing/switching capacity: 20 Gbps

Stacking capabilities:9

Throughput:15 Mpps

Memory and processor: 512 MB SDRAM; Packet buffer size: 1.5 MB, 256 MB flash

Operating temperature: –40°F to 158°F (–40°C to 70°C)

Management features: IMC; SmartMC, command-line interface; SNMP manager

Warranty: Limited Lifetime Warranty

Heat dissipation: Up to 8163 BTU/hr depending on modules chosen

Input voltage: 100–120/200–240VAC rated depending on power supply chosen

Ports: Supports a maximum of 10 I/O module slots with 40 100 GbE ports or 240 40GbE ports or 480 10GbE ports or 480 1GbE ports or 480 Fiber Ethernet ports, or a combination depending on configuration selected

Routing/switching capacity: Up to 9.6 Tbps depending on switch and chassis chosen

Stacking capabilities: 4

Throughput: Up to 7200 Mpps

Memory and processor: Flash 2GB, SDRAM 4GB; depending on chosen configuration

Operating temperature: 32°F to 113°F (0°C to 45°C)

Management features:
IMC—Intelligent Management Center; Command-line interface; Web browser; Out-of-band management (serial
RS-232c); SNMP manager; Telnet; Terminal interface (serial RS-232c); Modem interface; IEEE 802.3 Ethernet MIB; Ethernet interface MIB.

Warranty: Limited Lifetime Warranty

Weight: Min 35 kg and max 95 kg, depending on chosen configuration (Min 77 lb and max 209 lb, depending on chosen configuration)

Power consumption: 150W (maximum)

Heat dissipation: Ranges from 81 BTU/hr to 324 BTU/hr and 81 BTU/hr to 416 BTU/hr depending on power supply configuration

Input voltage: 90 to 264 VAC and -36 to -72 VDC

Ports: (48) 10/100/1000 BASE-T ports and (4) SFP+ ports maximum OR (16) 10/100/1000 BASE-T ports; (8) combo SFP or RJ45 ports; (4) SFP+ ports OR (16) BASE-X SFP; (8) combo SFP or RJ45 ports; (4) SFP+ ports; (1) port expansion module slot; PoE+ available, depending on model

Latency: 1000 Mb Latency: < 5 µs 10 Gbps Latency: < 3 µs

Routing/switching capacity: 336 Gbps maximum, depending on model

Switching capacity: From 288 Gbps to 336 Gbps depening on the model

Stacking capabilities: IRF 9 switches

Throughput: 180 Mpps maximum

Memory and processor: 2 GB SDRAM; Packet buffer size: 4 MB, 512 MB flash

Management features: IMC - Intelligent Management Center; Command-line interface; SNMP manager

Warranty: Limited lifetime warranty.

Power consumption: From 89 W to 99 W, depending on the model

Heat dissipation: From 785 BTU/h to 921 BTU/h, depending on the model

Input voltage:
VAC? From 100V to 240V
VDC ?From -48V to -60V

Ports: 48 SPF+, 40 1/10GBASE-T and 8 SFP+, 32 SFP+ or 24 10GBASE-T and 8 SFP+ ports, depending on model. All models also have 6 QSFP28 ports.

Latency: < 3 µs

Routing capabilities: RIP, OSPF, BGP, IPV6, MPLS

Switching capacity: 2240 Gbps to 2560 Gbps, depending on model

Stacking capabilities: Maximum 9 physical 5720 switches can be combined into one virtual switch configuration and are managed using a single IP address

Throughput: 1001 Mpps, maximum, depending on model

Memory and processor:
4GB flash, 4GB SDRAM, packet buffer size: 32M
Quad Core ARMv8-Cortex-A72;

Power supply name:
AC: 2 X JL592A/JL593A
DC: 2 X JL688A

Management features: IMC, IMC Orchestrator, CLI, out-of-band management, SNMP Manager, Telnet, FTP

Warranty: 1-year warranty.

• High-density 10GbE with 100G uplink for spine and leaf deployments, also supporting 40GbE connections on the 100GbE ports.
• L2/L3 VXLAN and EVPN support for virtualized environments.
• OpenFlow support for investment protection and software-defined network (SDN) environments.
• Unify management with HPE IMC.
• Data center convergence and resiliency with IRF.

Power consumption: 340W

Heat dissipation: 986 BTU/hr (1040.29 kJ/hr)

Input voltage: 100–240 VAC, rated, or -40 to -60 VDC, rated (depending on power supply chosen)

Ports: 48 fixed 1000/10000 SFP+ and 6 QSFP28 100GbE ports

Latency: < 10 µs (64-byte packets)

Routing/switching capacity: Up to 720 Mpps

Throughput: Up to 800 Gbps

Warranty: 1-year warranty.

Power consumption: Power output: 2400W

Input voltage:
100 - 240 VAC
-48 to -60 VDC
Depending on model and configuration

Ports: 16 I/O module slots, maximum; Supports a maximum of 768 40GbE, 768 10GbE, 1/10GbE copper, 1/10GbE fiber, 1GbE fiber, or 10/100/1000 ports, or 576 100GbE ports, or a combination

Latency: Low latency under 5 microsecond latency (64-byte packets)

Routing capabilities: BGP-4, BGP+, ECMP, IS-IS, IPV4, IPV6, MPLS, OSPF, Ospfv3, RIP, RIPng, URPF, VPLS

Switching capacity: 184 Tbps; Maximum, depending on model and configuration

Throughput: 92.1 Bpps; Maximum, depending on model and configuration

Memory and processor: Quad Core MIPS64 at 1.2 GHz, 1 GB flash, 8 GB DDR2 SDRAM

Power supply name:
16 power supply slots
1 minimum power supply required (ordered separately)

Management features: IMC - Intelligent Management Center; Command-line interface; Out-of-band management (serial RS-232C); SNMP manager; Telnet; Terminal interface (serial RS-232C); Modem interface; IEEE 802.3 Ethernet MIB; Ethernet interface MIB

Warranty: 1-year warranty

Power consumption:
Idle: Single AC: 5-23W, depending on model; Dual AC: 13W
Full load: Single AC: 35W, Dual AC: 37W
DC power in selected model only

Input voltage: AC: 90V to 290V; DC: -36V to -72V, depending on model

Latency: 1GE: < 5 µs; 10GE: < 3 µs

Switching capacity: 60 - 176 Gbps, depending on model

Stacking capabilities: 9 members IRF

Throughput: 45 - 131 Mpps

Memory and processor:
CPU: Arm 1.2 GHz Dual Core
2 GB SDRAM, 1 GB Flash, 1.5 MB packet buffer

Operating temperature: 23°F to 113°F (–5°C to 45°C)

Management features: IMC - Intelligent Management Center; Command-line interface; SNMP manager; SmartMC GUI

Warranty: Limited lifetime warranty. See the warranty duration guide.

Ports: 24x 100/1000BASE-X SFP ports, 8x 10/100/1000BASE-T Combo ports; or 24x 10/100/1000BASE-T ports; or 48x 10/100/1000BASE-T ports; or 24x 10/100/1000BASE-T PoE+ ports and 4x 100/1000BASE-X SFP Combo ports; or 48x 10/100/1000BASE-T PoE+ ports; plus 4x 1G/10G BASE-X SFP+ ports
8x 10/100/1000BASE-T ports; or 8x 10/100/1000BASE-T PoE+ ports; plus 2x 1000BASE-X SFP ports and 2x 1G/10G BASE-X SFP+ ports, depending on model

Power consumption: Max 2385W (including 2010W of PoE)

Heat dissipation: Ranges from 134 BTU/hour to 8137 BTU/hour, depending on power supply configuration

Input voltage: AC: 90 VAC to 264 VAC, DC: -36 VDC to 72 VDC

Ports: Up to 48 x 100M/1G/2.5G/5G/10GBASE-T (PoE8) + 4 x QSFP Plus + 1 expansion slot

Latency: < 5 us (1000Mb), < 3 us (10Gbps) <1.2 us (40Gbps)

Routing/switching capacity: From 640 Gbps up to 1440 Gbps depending on the model

Stacking capabilities:9

Throughput: Up to 600 Mpps

Memory and processor: Up to 2 GB SDRAM; packet buffer size: 6 MB, 1G flash

Power supply name: 2 Power Supply Slots (Min1/Max2), JG544A (720W), JG545A (1110W)

PoE capability: 90W PoE power per port

Operating temperature: 23°F to 113°F (–5°C to 45°C)

Management features: This switch series includes Smart Management Center (SmartMC) at no additional cost and combined with HPE Intelligent Management Center (IMC), provides both embedded network management and enhanced network visibility.

Warranty: These switches support Limited Lifetime warranty for details on warranty and software releases available with your product purchase, please refer to hpe.com/networking/support

Weight: Up to 6.05 kg (Up to 13.34 lb)

Dimensions: 4.37 x 44 x 46 cm (1.72 x 17.32 x 18.11 in)

Power consumption: Up to 2750W

Input voltage: 90 – 140/180 – 264 VAC

Ports:(8) I/O module slots
Supports a maximum of 256 10 GbE (SFP/SFP+) ports, or 64 40 GbE (QSFP+) ports, or 48 ports 40/100 GbE (QSFP28), or a combination

Switching capacity: 19.2 Tbps Maximum, depending on model and configuration

Stacking capabilities: Switch Stacking

Throughput:
8.6 Bpps
Maximum, depending on model and configuration

Power supply name:
4 power supply slots
2 minimum power supply required for a fully loaded chassis (or with 8 Line Modules)
HPE Aruba Networking X382 54VDC 2700W AC Power Supply (JL372A)

Management features:
SNMP
RJ45 for Serial Console
USB?Type A for file management only
RJ45 Ethernet for OOBM

Warranty: Limited lifetime warranty.

Input voltage: AC Voltage: 100 VAC–240 VAC

Ports: 48 10/100/1000 ports, maximum, or 16 100/1000 Mbps SFP and 8 dual-personality 100/1000 ports 4 SFP+ fixed 1000/10000 SFP+ ports, maximum 2 1 G BASE-T ports available on select models PoE+ available, depending on model

Latency:
1000 Mb latency: < 5 µs
10 Gbps latency: < 3 µs

Routing capabilities: Table Size: 1024 entries;
MAC address: 16,384 entries IPv6 Ready Certified

Switching capacity: 176 Gbps Maximum, depending on model

Stacking capabilities: IRF 9 switches

Throughput: 132 Mpps Maximum, depending on model

Memory and processor: 512 MB SDRAM, 256 MB flash

Power supply name: At least 1 power supply is required (not included, must be ordered separately)

PoE capability: 370W PoE+ Maximum, depending on model

Operating temperature: 23°F to 113°F (–5°C to 45°C)

Management features: HPE Aruba Networking IMC - Intelligent Management Center; SmartMC; Command-line interface; Web browser; SNMP manager

Warranty: Limited lifetime warranty.

Power consumption: 1600W @ 200-240 VAC, 1000W @ 100-127 VAC

Input voltage: 100?127/200?240 VAC

Ports: 6-line card slots up to 160 Gb/s forwarding per slot

Latency: 2.5 micro sec

Switching capacity: 960 Gbps (480 Gbps in + 480 Gbps out)

Throughput: 714 Mpps

Memory and processor: 16GB DDR4 SODIMM with ECC, 32GB eMMC Flash memory. 64MB shared packet buffer memory shared dynamically among ports

Power supply name: Supports 4 field replaceable and hot-swappable power supply slots

PoE capability: Industry-standard IEEE 802.3bt High Power PoE support provides up to 90W of Class 8 PoE power per port to support the latest APs and IoT devices

Operating temperature: 32°F to 113°F (0°C to 45°C), up to 5000 feet
Derate 1°C every 1000 feet from 5000 feet to 10000 feet

Management features: HPE Aruba Networking Central Network Management
HPE Aruba Networking Switch Multi-Edit Software
Command-line interface
SNMPv2c/v3
RMON

Warranty: Limited Lifetime warranty.

Power consumption: Max Power (w/o PoE): 45W Max Power (w/ PoE): 480W depending on model

Input voltage: 100-127 VAC / 200-240 VAC

Ports: Depends on model

Latency Gbps: 2.3 μSec, maximum, depending on model

Routing capabilities: Static

Switching capacity: 104 Gbps, maximum, depending on model

Throughput: Up to 77.3 Mpps, depending on model

Memory and processor: Dual Core ARM Cortex A9 @ 1016 Mhz 8 GB DDR3, maximum, depending on model 16 GB eMMC

PoE capability: 370W, maximum, depending on model

Operating temperature: 32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km)
derate -1°C for every 1000 ft (305 m) from 5000 ft
(1.5 km) to 10000 ft (3.0 km)

Warranty: Limited lifetime warranty.

Input voltage: 100–127/200–240 VAC, rated

Ports: (8, 12, 24 or 48) 10/100/1000 ports, (4) 1GbE SFP ports or (4) 10GbE SFP+ ports. PoE+ on selected models.

Switching capacity: 56 - 176 Gbps maximum, depending on model and configuration

Throughput: 41-112 Mpps maximum, depending on model and configuration

Memory and processor: Dual Core ARM Cortex A9 @ 1016 MHz
1 GB DDR3 SDRAM
Packet buffer size: 12.38 MB 4.5 MB Ingress/7.875 MB Egress
4 GB eMMC

PoE capability: 740W PoE+ maximum, depending on model

Management features: HPE Aruba Networking Management Software (AirWave)
Central Network Management
IMC - Intelligent Management Center
Command-line interface
Web browser
Configuration menu
SNMP manager
Telnet
RMON1
FTP
Out-of-band management (serial RS-232C or micro USB)

Warranty: Limited lifetime warranty.

Ports: Up to 48 ports of HPE Smart Rate (1G/2.5G/5G/10 GbE)

Switching capacity: Up to 880 Gbps to 1760 Gbps, depending on model and configuration

Stacking capabilities: Up to 10 switches per stack

Throughput: Up to 660 Mpps to 1310 Mpps, depending on model and configuration

Memory and processor: Quad Core Arm Cortex A72 @ 1.8GHz
8 GB DDR4, 32 GB eMMC

8 MB, 16 MB, or 32 MB Shared Packet Buffer Memory, depending on model and configuration

PoE capability: Max PoE Power: Up to 370W, 720W, 1440W, 2640W, or 2880W, depending on model and installed power supplies

Management features:
HPE Aruba Networking Central Network Management
HPE Aruba Networking Management Software (AirWave)
HPE Aruba Networking Switch Multi-Edit Software
Command-line interface
SNMP v2c/v3
RMON

Warranty: Limited lifetime warranty.

Weight: 6.02 kg, maximum, depending on model (13.27 lbs, maximum, depending on model)

Dimensions: 4.4 x 44.2 x 38.5 cm, maximum, depending on model (1.73 x 17.4 x 15.2 in, maximum, depending on model)

Power consumption:
Max Power (w/o PoE): 45W
Max Power (w/ PoE): 480W
Depending on the model

Input voltage: 100-127 VAC / 200-240 VAC

Ports: Depends on model

Latency: 1 Gbps: 2.3 μSec , 10 Gbps: 2.6 μSec, maximum, depending on model

Switching capacity: 176 Gbps, maximum, depending on model

Throughput: Up to 98.6 Mpps, depending on model

Memory and processor:
Dual Core ARM Cortex A9 @ 1016 Mhz
4 GB DDR3, maximum, depending on model
16 GB eMMC

PoE capability: 370W, maximum, depending on model

• Brand: HPE
• Part Number: JG537A
• UPC: 00887758142509
• CONDITION: Refurbished

• Brand: HPE
• Part Number: JG510A
• UPC: 00658759143600
• CONDITION: New

• Brand: HPE
• Part Number: JG296A
• UPC: 00886111820023
• CONDITION: New

• Brand: HPE
• Part Number: JC772A
• UPC: 00886111975945
• CONDITION: Refurbished

• Brand: HPE
• Part Number: J9801A
• UPC: 00887111275059
• CONDITION: Refurbished

• Brand: HPE
• Part Number: J9147A
• UPC: 00884420767114
• CONDITION: Refurbished

• Brand: HPE
• Part Number: J9145A
• UPC: 00658759139559
• CONDITION: Refurbished

• Brand: HPE
• Part Number: JL357A ABA
• UPC: 00190017094861
• CONDITION: New

• Brand: HPE
• Part Number: JL357A
• UPC: 00190017094861
• CONDITION: New

• Brand: HPE
• Part Number: JL357 61001
• UPC: 00190017094861
• CONDITION: New

• Brand: HPE
• Part Number: JL076A
• UPC: 00656541851351
• CONDITION: New

• Part Number: J9993-61001
• UPC: 00883585354634
• Device Type: Expansion Module
• Form Factor: Plug-in Module
• Data Transfer Rate: 10 Gbps
• Connectivity Technology: Wired
• CONDITION: New

• Part Number: J9827A
• UPC: 00888182309087
• Device Type: Network Management Device
• Connectivity Technology: Wired
• Form Factor: Plug-in Module
• CONDITION: New

• Part Number: J9827-61001
• UPC: 00888182309087
• Device Type: Network Management Device
• Connectivity Technology: Wired
• Form Factor: Plug-in Module
• Interfaces: 1 x Console - RJ-45 ¦ 1 x Management - RJ-45
• CONDITION: New

• Part Number: J9822A
• UPC: 00888182309032
• switching Capacity: 1920 Gbps
• Switch Fabric Speed: 2030 Gbps
• Input Voltage: 100 - 127 / 200 - 240 VAC, rated
• CONDITION: New

• Part Number: J9821A
• UPC: 00888182309025
• Device Type: Switch - Managed
• Enclosure Type: Rack Mountable 4U
• Subtype: Gigabit Ethernet
• CONDITION: New

• Part Number: J9821-61001
• UPC: 00888182309025
• Device Type: Switch Managed
• Subtype: Gigabit Ethernet
• Rack Units: 4U
• Power Supply Slots: 2
• CONDITION: New

• Part Number: J9733 61001
• UPC: 00000886334084
• Number Of Ports: 2
• Device Type: Stacking Module
• Transfer Rate: 48-Gigabit
• CONDITION: New

• Part Number: J9577
• UPC: 00000886334084
• Device Type : Network Stacking Module - 4 Ports
• Form Factor : Plug-in Module
• CONDITION :New

• Part Number: J9538A
• UPC: 00885631940877
• Device Type: Expansion Module - 8 Ports
• Form Factor: Plug-in Module
• Connectivity Technology: Wired
• Data Transfer Rate: 10 Gbps
• Data Link Protocol: 10 Gigabit Ethernet
• CONDITION: Refurbished

• Part Number: J8693A ABA
• UPC: 00882780457898
• Input frequency: 50 / 60 Hz
• Power supply PoE: 398 Watt
• Switch fabric speed: 153.6 Gbps
• Input voltage: 100-127 / 200-240 Volt AC
• CONDITION: New

• Part Number: J8693A
• UPC:00882780457928
• Switch fabric speed: 153.6 Gbps
• Switching capacity: 149.8 Gbps
• Input frequency: 50 / 60 Hz
• Form factor: 1U Height (Rack-mountable)
• Input voltage: 100-127 / 200-240 Volt AC
• CONDITION: New

• Part Number: J8693-69001
• UPC:00882780457898
• Switching capacity: 149.8 Gbps
• Power consumption: 705 Watt
• Input frequency: 50 / 60 Hz
• Input voltage: 100-127 / 200-240 Volt AC
• Form factor: 1U Height (Rack-mountable)
• CONDITION: New

• Part Number: J8693 61401
• UPC: 00882780457928
• Switch fabric speed: 153.6 Gbps
• Switching capacity: 149.8 Gbps
• Power consumption: 705 Watt
• Input frequency: 50 / 60 Hz
• Form factor: 1U Height (Rack-mountable)
• Input voltage: 100-127 / 200-240 Volt AC
• CONDITION: New

• Part Number: J8693-61301
• UPC: 00882780457928
• Switch fabric speed: 153.6 Gbps
• Power consumption: 705 Watt
• Input frequency: 50 / 60 Hz
• Input voltage: 100-127 / 200-240 Volt AC
• Form factor: 1U Height (Rack-mountable)
• CONDITION: New

• Part Number: J8693-61001
• UPC: 00882780457898
• Switch fabric speed: 153.6 Gbps
• Power consumption: 705 Watt
• Input frequency: 50 / 60 Hz
• Power supply PoE: 398 Watt
• Input voltage: 100-127 / 200-240 Volt AC
• CONDITION: New

• Part Number: J9986-61001
• UPC: 00888182604243
• Form Factor: Plug-in module
• Interfaces: 24 x 1000Base-T (PoE+) - RJ-45
• Data Transfer Rate: 1 Gbps
• Ports: Gigabit Ethernet (PoE+) x 24
• CONDITION: New

• Part Number: J9726A
• UPC: 00886112321970
• Processor: 1 x ARM : 625 MHz
• RAM: 512 MB - SDRAM
• Subtype: Gigabit Ethernet
• Ports: 20 x 10/100/1000 + 4 x combo Gigabit SFP
• Switching capacity: 128 Gbps
• Flash Memory: 1 GB
• CONDITION: Refurbished

• Part Number: 699350-001
• UPC: 00880959390632
• Enclosure Type: Plug-in module
• Ports: 16 x 10/20Gb Ethernet (midplane downlink) + 2 x 20Gb Ethernet (cross connect link) + 4 x 40 Gigabit QSFP+ (uplink) + 8 x 10 Gigabit SFP+ (uplink)
• Capacity: Network access groups: 128
• CONDITION: Refurbished

• Part Number: 691367-B21
• UPC: 00886112939700
• Enclosure Type: Plug-in module
• Ports: 16 x 10/20Gb Ethernet (midplane downlink) + 2 x 20Gb Ethernet (cross connect link) + 4 x 40 Gigabit QSFP+ (uplink) + 8 x 10 Gigabit SFP+ (uplink)
• Capacity: Network access groups: 128
• CONDITION: Refurbished

• Part Number: 538113-B21
• UPC: 00884962022948
• Device Type: Switch - 16 ports
• Type: Plug-in module
• Ports: 16 x 10 Gigabit SFP+
• Interfaces: 16 x 10Gb Ethernet - SFP+ 1 x USB - management
• CONDITION: Refurbished

• Part Number: JL072A
• UPC: 00888793596586
• Ethernet Technology: Gigabit Ethernet
• Network Technology: 10/100/1000Base-TX
• CONDITION: New

• Part Number: J9729A
• Type: Aruba 2920 48G POE+ Switch
• Switching capacity: 176 Gb/s
• power: 370 W
• Dimensions: 4.39 x 44.25 x 33.6 cm (1.73 x 17.42 x 13.23 in)
• UPC: 00886112322595
• CONDITION: Refurbished

• Part Number: J9986A
• UPC: 00888182604243
• Interfaces: 24 x 1000Base-T (PoE+) - RJ-45
• Form Factor: Plug-in module
• Cabling Type: Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
• CONDITION: New

• Part Number: JL075A
• UPC: 00888793596616
• Ports: 16 x 10 Gigabit SFP+
• RAM: 6 GB DDR3 SDRAM
• Flash Memory: 1 GB
• Switching capacity: 480 Gbps
• CONDITION: New

• Part Number: JL003A
• Processor: Freescale P2020 dual core 1.2 GHz 16 MB flash 1 GB SD Card
• Memory: 4 GB DDR3 SODIMM
• Dimension: 17.5 x 17.75 x 6.9 in
• UPC: 00888182604373
• Voltage: 110 - 127 / 200 - 240 VAC, rated
• CONDITION: New

• Part Number: J9728A
• Number of Ports: 48
• UPC: 00886112322359
• Port Speed: 100Mbps
• Power supply: 1
• Form Factor: 1U
• CONDITION: New

• Part Number: J9993A
• UPC: 00888182604311
• CONDITION: New
• Weight: 1.65 lb
• Dimensions: 10.3 x 8.13 x 1.75 in

• Product Overview :
  HPE OfficeConnect 1820 Switch Series devices are basic
  smart-managed, fixed-configuration Gigabit Ethernet Layer 2 switches designed for small businesses looking for key features in an easy-to-administer solution.
  The series is part of the OfficeConnect portfolio of Hewlett Packard Enterprise small business networking products.
  The series consists of six switches including 8-, 24- and 48-port Gigabit Ethernet switches and 8-, 24-, and 48-port Gigabit PoE+ models each providing non-blocking Gigabit per port performance.
  Some models include SFP ports for fiber connectivity and the 8-, 24-, and 48-port non PoE+ models are fanless, making them ideal for office deployments.
  All HPE OfficeConnect 1820 Switches support flexible installation options, including mounting on wall, under table, or on desktop.
  The 8-port Gigabit Ethernet model can be powered by an upstream Power over Ethernet (PoE) switch for environments where no line power is available.

  These Gigabit switches are plug-and-play out of the box, yet network operation can be fine-tuned through features available from a simple Web browser-based GUI, if necessary.
  Customizable features include VLANs, Rapid Spanning Tree, IGMP Snooping, link aggregation trunking, and DSCP QoS policies.
  All models include the latest energy-saving capabilities, including Energy Efficient Ethernet (EEE) and idle-port power down.
  HPE OfficeConnect 1820 Switch Series is covered by a Limited Lifetime Warranty
  Warranty : Lifetime

• Product Overview :
  HPE OfficeConnect 1820 Switch Series devices are basic
  smart-managed, fixed-configuration Gigabit Ethernet Layer 2 switches designed for small businesses looking for key features in an easy-to-administer solution.
  The series is part of the OfficeConnect portfolio of Hewlett Packard Enterprise small business networking products.
  The series consists of six switches including 8-, 24- and 48-port Gigabit Ethernet switches and 8-, 24-, and 48-port Gigabit PoE+ models each providing non-blocking Gigabit per port performance.
  Some models include SFP ports for fiber connectivity and the 8-, 24-, and 48-port non PoE+ models are fanless, making them ideal for office deployments.
  All HPE OfficeConnect 1820 Switches support flexible installation options, including mounting on wall, under table, or on desktop.
  The 8-port Gigabit Ethernet model can be powered by an upstream Power over Ethernet (PoE) switch for environments where no line power is available.

  These Gigabit switches are plug-and-play out of the box, yet network operation can be fine-tuned through features available from a simple Web browser-based GUI, if necessary.
  Customizable features include VLANs, Rapid Spanning Tree, IGMP Snooping, link aggregation trunking, and DSCP QoS policies.
  All models include the latest energy-saving capabilities, including Energy Efficient Ethernet (EEE) and idle-port power down.
  HPE OfficeConnect 1820 Switch Series is covered by a Limited Lifetime Warranty.
  Warranty : Lifetime

• Product Overview :
  HPE OfficeConnect 1820 Switch Series devices are basic
  smart-managed, fixed-configuration Gigabit Ethernet Layer 2 switches designed for small businesses looking for key features in an easy-to-administer solution.
  The series is part of the OfficeConnect portfolio of Hewlett Packard Enterprise small business networking products.
  The series consists of six switches including 8-, 24- and 48-port Gigabit Ethernet switches and 8-, 24-, and 48-port Gigabit PoE+ models each providing non-blocking Gigabit per port performance
  Some models include SFP ports for fiber connectivity and the 8-, 24-, and 48-port non PoE+ models are fanless, making them ideal for office deployments.
  All HPE OfficeConnect 1820 Switches support flexible installation options, including mounting on wall, under table, or on desktop.
  The 8-port Gigabit Ethernet model can be powered by an upstream Power over Ethernet (PoE) switch for environments where no line power is available.

  These Gigabit switches are plug-and-play out of the box, yet network operation can be fine-tuned through features available from a simple Web browser-based GUI, if necessary.
  Customizable features include VLANs, Rapid Spanning Tree, IGMP Snooping, link aggregation trunking, and DSCP QoS policies.
  All models include the latest energy-saving capabilities, including Energy Efficient Ethernet (EEE) and idle-port power down.
  HPE OfficeConnect 1820 Switch Series is covered by a Limited Lifetime Warranty
  Warranty : Lifetime

• Product Overview :
  HPE OfficeConnect 1820 Switch Series devices are basic
  smart-managed, fixed-configuration Gigabit Ethernet Layer 2 switches designed for small businesses looking for key features in an easy-to-administer solution.
  The series is part of the OfficeConnect portfolio of Hewlett Packard Enterprise small business networking products.
  The series consists of six switches including 8-, 24- and 48-port Gigabit Ethernet switches and 8-, 24-, and 48-port Gigabit PoE+ models each providing non-blocking Gigabit per port performance.
  Some models include SFP ports for fiber connectivity and the 8-, 24-, and 48-port non PoE+ models are fanless, making them ideal for office deployments.
  All HPE OfficeConnect 1820 Switches support flexible installation options, including mounting on wall, under table, or on desktop.
  The 8-port Gigabit Ethernet model can be powered by an upstream Power over Ethernet (PoE) switch for environments where no line power is available.

  These Gigabit switches are plug-and-play out of the box, yet network operation can be fine-tuned through features available from a simple Web browser-based GUI, if necessary.
  Customizable features include VLANs, Rapid Spanning Tree, IGMP Snooping, link aggregation trunking, and DSCP QoS policies.
  All models include the latest energy-saving capabilities, including Energy Efficient Ethernet (EEE) and idle-port power down.
  HPE OfficeConnect 1820 Switch Series is covered by a Limited Lifetime Warranty
  Warranty : Lifetime

• Product Overview :
  HPE OfficeConnect 1820 Switch Series devices are basic
  smart-managed, fixed-configuration Gigabit Ethernet Layer 2 switches designed for small businesses looking for key features in an easy-to-administer solution.
  The series is part of the OfficeConnect portfolio of Hewlett Packard Enterprise small business networking products.
  The series consists of six switches including 8-, 24- and 48-port Gigabit Ethernet switches and 8-, 24-, and 48-port Gigabit PoE+ models each providing non-blocking Gigabit per port performance.
  Some models include SFP ports for fiber connectivity and the 8-, 24-, and 48-port non PoE+ models are fanless, making them ideal for office deployments.
  All HPE OfficeConnect 1820 Switches support flexible installation options, including mounting on wall, under table, or on desktop.
  The 8-port Gigabit Ethernet model can be powered by an upstream Power over Ethernet (PoE) switch for environments where no line power is available.

  These Gigabit switches are plug-and-play out of the box, yet network operation can be fine-tuned through features available from a simple Web browser-based GUI, if necessary.
  Customizable features include VLANs, Rapid Spanning Tree, IGMP Snooping, link aggregation trunking, and DSCP QoS policies.
  All models include the latest energy-saving capabilities, including Energy Efficient Ethernet (EEE) and idle-port power down.
  HPE OfficeConnect 1820 Switch Series is covered by a Limited Lifetime Warranty.

• Product Overview :
  HPE OfficeConnect 1820 Switch Series devices are basic
  smart-managed, fixed-configuration Gigabit Ethernet Layer 2 switches designed for small businesses looking for key features in an easy-to-administer solution.
  The series is part of the OfficeConnect portfolio of Hewlett Packard Enterprise small business networking products.
  The series consists of six switches including 8-, 24- and 48-port Gigabit Ethernet switches and 8-, 24-, and 48-port Gigabit PoE+ models each providing non-blocking Gigabit per port performance.
  Some models include SFP ports for fiber connectivity and the 8-, 24-, and 48-port non PoE+ models are fanless, making them ideal for office deployments.
  All HPE OfficeConnect 1820 Switches support flexible installation options, including mounting on wall, under table, or on desktop.
  The 8-port Gigabit Ethernet model can be powered by an upstream Power over Ethernet (PoE) switch for environments where no line power is available.

  These Gigabit switches are plug-and-play out of the box, yet network operation can be fine-tuned through features available from a simple Web browser-based GUI, if necessary.
  Customizable features include VLANs, Rapid Spanning Tree, IGMP Snooping, link aggregation trunking, and DSCP QoS policies.
  All models include the latest energy-saving capabilities, including Energy Efficient Ethernet (EEE) and idle-port power down.
  HPE OfficeConnect 1820 Switch Series is covered by a Limited Lifetime Warranty
  Warranty : Lifetime

• The HPE OfficeConnect 1420 Switch Series consists of unmanaged business-class Gigabit Ethernet switches for small business and others looking for plug-and-play basic Layer 2 connectivity for their network
• The 1420 Switch Series includes nine Gigabit switches
• 16-port 10/100/1000
• 24-port 10/100/1000 with two SFP Gigabit ports
• 24-port 10/100/1000 ports of which 12 are Power over Ethernet (PoE+) enabled with a total PoE power budget of 124W
• and 24-port 10/100/1000 with two SFP+ 10GbE ports
• The 1420 Switch Series also includes a 5-port 10/100/1000
• 5-port 10/100/1000 with 4 out of 5 ports as PoE+ ports
• an 8-port 10/100/1000, 8-port 10/100/1000 with 8 out of 8 ports as PoE+ ports and a simple 24 port 10/100/1000 switch
• They are fanless for silent operation. They come with a limited lifetime Warranty

HPE OfficeConnect 1420 switches have quality of service (QoS) support and IEEE 802.3x flow control features that improve network efficiency. Simplified plug-and-play convenience is supported by features such as auto-MDIX and auto-speed negotiation. Hewlett Packard Enterprise has innovated and combined the latest advances in silicon technology to bring you some of the most power-efficient switches. All models support the Energy Efficient Ethernet IEEE 802.3az standard, as well as auto power-down mode on idle ports and power saving on short-distance cables. With their fanless silent operation, these switches are ideal for office deployment
HPE OfficeConnect 1420 switches come with a limited lifetime warranty
Warranty :Lifetime

The HPE OfficeConnect 1420 Switch Series consists of unmanaged business-class Gigabit Ethernet switches for small business and others looking for plug-and-play basic Layer 2 connectivity for their network
The 1420 Switch Series includes nine Gigabit switches
16-port 10/100/1000
24-port 10/100/1000 with two SFP Gigabit ports
24-port 10/100/1000 ports of which 12 are Power over Ethernet (PoE+) enabled with a total PoE power budget of 124W
and 24-port 10/100/1000 with two SFP+ 10GbE ports
The 1420 Switch Series also includes a 5-port 10/100/1000
5-port 10/100/1000 with 4 out of 5 ports as PoE+ ports
an 8-port 10/100/1000, 8-port 10/100/1000 with 8 out of 8 ports as PoE+ ports and a simple 24 port 10/100/1000 switch
They are fanless for silent operation. They come with a limited lifetime Warranty

HPE OfficeConnect 1420 switches have quality of service (QoS) support and IEEE 802.3x flow control features that improve network efficiency. Simplified plug-and-play convenience is supported by features such as auto-MDIX and auto-speed negotiation. Hewlett Packard Enterprise has innovated and combined the latest advances in silicon technology to bring you some of the most power-efficient switches. All models support the Energy Efficient Ethernet IEEE 802.3az standard, as well as auto power-down mode on idle ports and power saving on short-distance cables. With their fanless silent operation, these switches are ideal for office deployment
HPE OfficeConnect 1420 switches come with a limited lifetime warranty
Warranty : Lifetime

The HPE OfficeConnect 1420 Switch Series consists of unmanaged business-class Gigabit Ethernet switches for small business and others looking for plug-and-play basic Layer 2 connectivity for their network
The 1420 Switch Series includes nine Gigabit switches
16-port 10/100/1000
24-port 10/100/1000 with two SFP Gigabit ports
24-port 10/100/1000 ports of which 12 are Power over Ethernet (PoE+) enabled with a total PoE power budget of 124W
and 24-port 10/100/1000 with two SFP+ 10GbE ports
The 1420 Switch Series also includes a 5-port 10/100/1000
5-port 10/100/1000 with 4 out of 5 ports as PoE+ ports
an 8-port 10/100/1000, 8-port 10/100/1000 with 8 out of 8 ports as PoE+ ports and a simple 24 port 10/100/1000 switch
They are fanless for silent operation. They come with a limited lifetime Warranty

HPE OfficeConnect 1420 switches have quality of service (QoS) support and IEEE 802.3x flow control features that improve network efficiency. Simplified plug-and-play convenience is supported by features such as auto-MDIX and auto-speed negotiation. Hewlett Packard Enterprise has innovated and combined the latest advances in silicon technology to bring you some of the most power-efficient switches. All models support the Energy Efficient Ethernet IEEE 802.3az standard, as well as auto power-down mode on idle ports and power saving on short-distance cables. With their fanless silent operation, these switches are ideal for office deployment
HPE OfficeConnect 1420 switches come with a limited lifetime warranty
Warranty : Lifetime

The HPE OfficeConnect 1420 Switch Series consists of unmanaged business-class Gigabit Ethernet switches for small business and others looking for plug-and-play basic Layer 2 connectivity for their network
The 1420 Switch Series includes nine Gigabit switches
16 port 10/100/1000
24 port 10/100/1000 with two SFP Gigabit ports
24 port 10/100/1000 ports of which 12 are Power over Ethernet (PoE+) enabled with a total PoE power budget of 124W
and 24 port 10/100/1000 with two SFP+ 10GbE ports
The 1420 Switch Series also includes a 5 port 10/100/1000
5-port 10/100/1000 with 4 out of 5 ports as PoE+ ports
an 8-port 10/100/1000, 8-port 10/100/1000 with 8 out of 8 ports as PoE+ ports and a simple 24 port 10/100/1000 switch
They are fanless for silent operation. They come with a limited lifetime Warranty

HPE OfficeConnect 1420 switches have quality of service (QoS) support and IEEE 802.3x flow control features that improve network efficiency. Simplified plug-and-play convenience is supported by features such as auto-MDIX and auto-speed negotiation. Hewlett Packard Enterprise has innovated and combined the latest advances in silicon technology to bring you some of the most power-efficient switches. All models support the Energy Efficient Ethernet IEEE 802.3az standard, as well as auto power-down mode on idle ports and power saving on short-distance cables. With their fanless silent operation, these switches are ideal for office deployment
HPE OfficeConnect 1420 switches come with a limited lifetime warranty
Warranty : Lifetime

Product Overview :
The HPE OfficeConnect 1420 Switch Series consists of unmanaged business-class Gigabit Ethernet switches for small business and others looking for plug-and-play basic Layer 2 connectivity for their network
The 1420 Switch Series includes nine Gigabit switches
16 port 10/100/1000
24 port 10/100/1000 with two SFP Gigabit ports
24 port 10/100/1000 ports of which 12 are Power over Ethernet (PoE+) enabled with a total PoE power budget of 124W
and 24 port 10/100/1000 with two SFP+ 10GbE ports
The 1420 Switch Series also includes a 5 port 10/100/1000
5-port 10/100/1000 with 4 out of 5 ports as PoE+ ports
an 8-port 10/100/1000, 8-port 10/100/1000 with 8 out of 8 ports as PoE+ ports and a simple 24 port 10/100/1000 switch
They are fanless for silent operation. They come with a limited lifetime Warranty

HPE OfficeConnect 1420 switches have quality of service (QoS) support and IEEE 802.3x flow control features that improve network efficiency. Simplified plug and play convenience is supported by features such as auto-MDIX and auto-speed negotiation. Hewlett Packard Enterprise has innovated and combined the latest advances in silicon technology to bring you some of the most power-efficient switches. All models support the Energy Efficient Ethernet IEEE 802.3az standard, as well as auto power-down mode on idle ports and power saving on short-distance cables. With their fanless silent operation, these switches are ideal for office deployment
HPE OfficeConnect 1420 switches come with a limited lifetime warranty
Warranty : Lifetime

• Part No : J9775A
• Model no: HPE 2530 48G Switch
• Memory: 128 MB flash memory
• Capacity: 104 Gbps
• Specifications: IPv6, 48 10/100/1000 ports, 4 SFP ports
• Warranty: 3 Years Warranty

• Part No: J9773A
• Model no: HPE 2530 24GPoE+ Switch
• Memory: 256 MB
• Specifications: 10/100/1000 PoE+ ports,4 SFP ports (195W PoE+)
• Warranty: 3 Years Warranty

• Part No: J9776A
• Model no: HPE 2530 24G Switch
• Ram: 256 MB
• Specifications: 10/100/1000 ports, 4 SFP ports
• Warranty: 3 Years Warranty

• Port : 8-Port 10/100 PoE Smart Switch
• Brand Name : D-Link
• Ethernet Technology    : Fast Ethernet
• Form Factor : Desktop Rack-mountable
• Input Voltage :120 V AC; 230 V AC
• Layer Supported : 2
• Manageable : No
• Warranty : 3 Years


• Device Interfaces : RJ-11 ADSL port
• Wireless Speed : 150 Mbps
• Dimensions : 195.16 x 115.93 x 36.55 mm
• Wireles Transmission Power :  20 dBm +/- 2 dBm
• Data Rates : 12 Mbps downstream, 1 Mbps upstream
• VPN : Multiple PPTP/IPSec/L2TP pass-through
• QOS :  802.1p (0 to 7) traffic prioritization / Traffic Shaping
• Power Supply :  12 V AC / 0.5 A external power adapter
• Warranty : 3 Years

• Device Interfaces : 1 RJ-11 ADSL port
• Wireless Speed : 150 Mbps
• Dimensions : 110 X 37 X 98 mm
• Routing Protocols : Spanning Tree Protocol (STP)
• Type : Wireless with Modem
• VPN : Multiple IPSec/PPTP/L2TP pass-through
• QOS :  802.1p Priority Queues/ Application port/ User-defined (TCP/UDP/ICMP etc.)
• Power Supply : 12 Volts
• Frequency : 2.4 - 2.4835 GHz
• Warranty : 3 Years

• Ports : 24 x 10/100/1000 Mbps LAN ports
• Dimensions  : 282.2 x 178.0 x 44.5 mm
• Switching Capacity : 48 Gbps
• Switching Features : QoS
• Media Interface : Auto MDI/MDIX
• Transmission Method : Store-and-forward
• MAC Address Table Size  : 16K
• RAM Buffer : 512 KB per device
• Power Consumption : Power On (Standby): 6.5 watts / Maximum: 13.5 watts
• Maximum Heat Dissipation : 46.04 BTU/h
• Warranty : 3 Years

• Ports : 16 x 10/100/1000 Mbps
• Dimensions :  158W x 231D x 46H mm
• Casing : Plastic
• Switching Capacity : 3.2 Gbps
• Switching Features : D-Link Green Technology, Energy Efficient Ethernet, Quality of Service (QoS), auto-uplink (auto MDI/MDI-X), flow control,
• Transmission Method  : Store-and-forward
• Power Supply :  AC 120/230 V
• MAC Address Table Size : 8K
• RAM Buffer : 256 KB per device
• Warranty : 3 Years

• Ports :  8 10/100/1000 Mbps LAN ports
• Media interfaces : RJ45
• Dimensions : 151.2 x 96.0 x 22.0 mm
• Transmission Method  : Store-and-forward
• Switching Capacity : 16 Gbps
• MAC Address Table Size : 8K
• Power Consumption : Power On (Standby): 1.05 watts / Maximum: 4 watts
• Data Transfer Rates : 100 Mbps (half duplex) / 200 Mbps (full duplex)
• RAM Buffer : 256 KB per device
• Maximum Heat Dissipation : 18.20 BTU/h
• Warranty : 3 Years

• Ports : 24 10/100 Mbps LAN ports
• Dimensions : 282.2 x 151 x 44.5 mm
• Transmission Method : Store-and-forward
• MAC Address Table Size : 8K
• Switching features  :   IEEE 802.1p QoS / IEEE 802.3x Flow Control
• Switching Capacity : 4.8 Gbps
• RAM Buffer : 256 KB per device
• Power Consumption : Power On (Standby): 1.25 watts /  Maximum: 6 watts
• Data Transfer Rates : 100 Mbps (half duplex) / 200 Mbps (full duplex)
• Maximum Heat Dissipation  : 27.3 BTU/h
• Warranty : 3 Years


• Ports : 24 10/100 Mbps LAN ports
• Dimensions : 282.2 x 151 x 44.5 mm
• Transmission Method : Store-and-forward
• MAC Address Table Size : 8K
• Switching features  :   IEEE 802.1p QoS / IEEE 802.3x Flow Control
• Switching Capacity : 4.8 Gbps
• RAM Buffer : 256 KB per device
• Power Consumption : Power On (Standby): 1.25 watts /  Maximum: 6 watts
• Data Transfer Rates : 100 Mbps (half duplex) / 200 Mbps (full duplex)
• Maximum Heat Dissipation  : 27.3 BTU/h
• Warranty : 3 Years


• Ports : 8 10/100 Mbps Fast Ethernet ports
• Media interfaces : RJ45
• Switching Capacity : 1.6 Gbps switching fabric
• Switching features : Wire-speed reception and transmission
• Transmission Method  : Store-and-forward
• Data Transfer Rates  : 10 Mbps (half duplex) / 20 Mbps (full duplex)
• MAC Address Table Size : 2K
• Power Consumption  : Power On (Standby): 0.55 watts / Maximum: 1.55 watts
• RAM Buffer : 96 KB per device
• Auto MDI/MDIX : yes

• Port : 5-port 10/100Mbps Unmanaged switch
• Dimension : 142 x 108 x 32 mm
• Media interfaces : RJ-45
• Switching features : SOHO Plug-and-Play
• Switching Capacity : 1 Gbps
• MAC table : 2k
• Power Supply : DC 5 V / 0.55 A
• DC jack : Located on side
• Casing : Plastic
• Max. Packet Forwarding Rate :     148.8 kpps
• 802.3x flow control : yes
• Auto MDI/MDIX : yes
• Warranty : 3 Years

• Product Type: Expansion module
• Part : JH157A
• Type : 2-port SFP+ Module
• Product Series : HPE 5510 2-port
• Form Factor : Plug-in module
• Connectivity: SFP+
• Ports: 2-port 10 GbE SFP+Module
• Designed For HPE 5130 24, 5130 48, 5510, 5510 24
• Limited Warranty : Lifetime

• Product Type: Expansion module
• Part : JH157A
• Type : 2-port SFP+ Module
• Product Series : HPE 5130 2-port
• Form Factor : Plug-in module
• Connectivity: SFP+
• Ports: 2-port 10 GbE SFP+Module
• Designed For HPE 5130 24, 5130 48, 5510, 5510 24
• Limited Warranty : Lifetime

• Product Type: Expansion module
• Part : JH156A
• Type : 2-port SFP+ Module
• Product Series : HPE 5130 2-port QSFP
• Form Factor : Plug-in module
• Connectivity: Wired
• Ports: 2-port 10 GbE Module
• Designed For HPE 5130, 5130 24, 5130 48, 5510, 5510 24
• Limited Warranty : Lifetime

• Product Type: Expansion module
• Part : JH156A
• Type : 2-port SFP + Module
• Product Series : HPE 5510 2-port
• Form Factor : Plug-in module
• Connectivity: Wired, Ethernet 1000Base-T, Ethernet 10GBase-T
• Ports: 2-port 10 GbE SFP Module
• Designed For HPE 5130 24, 5130 48, 5510, 5510 24
• Limited Warranty : Lifetime

• Product Type: Ethernet Switch
• Part: JH149A
• Type : Managed, Layer 3
• Product Series : 5510
• Product Model : 5510 24G SFP 4SFP
• Ports: 16 x Gigabit SFP + 4 x 10 Gigabit SFP+ + 8 x 10/100/1000/SFP
• Form Factor: Rack-mountable 1U
• Limited Warranty : Lifetime

• Product Type: Switch
• Part: JH147A
• Type : Managed, Layer 3
• Product Series : 5510
• Product Model : 5510 24G 4SFP+ HI
• Ports: 24 x 10/100/1000 + 4 x Gigabit SFP + 4 x 10 Gigabit SFP+
• Form Factor: Rack-mountable 1U
• PoE: PoE+
• Limited Warranty : Lifetim

• Product Type: Ethernet Switch
• Part: JH146A
• Type : Managed, Layer 3
• Product Series : 5510
• Product Model : 5510 48G 4SFP
• Ports: 48 x 10/100/1000 + 4 x Gigabit SFP + 4 x 10 Gigabit SFP+
• Form Factor: Rack-mountable 1U
• Limited Warranty : Lifetime


• Product Type: Ethernet Switch
• Part: JH145A
• Type : Managed, Layer 3
• Product Series : FlexNetwork 5510
• Product Model : 5510 24G 4SFP
• Ports: 24 x 10/100/1000 + 4 x Gigabit SFP + 4 x 10 Gigabit SFP+
• Form Factor: Rack-mountable 1U
• Limited Warranty : Lifetime

• Product Type: Ethernet Switch
• Part: JG312A
• Type : Managed, Layer 3
• Product Series : 5500
• Product Model : HI 5500 24G 4SFP
• Ports: 24 fixed Gigabit Ethernet 4SFP ports, 8 dual-personality ports, 2 port expansion module slots
• Form Factor: Rack-mountable 1U
• Limited Warranty : Lifetime

• Product Type: Ethernet Switch
• Part: JG311A
• Type : Managed, Layer 3
• Product Series : 5500
• Product Model : HI 5500 24G 4SFP
• Ports: 24 fixed Gigabit Ethernet 4SFP ports, 8 dual-personality ports, 2 port expansion module slots
• Form Factor: Rack-mountable 1U
• Limited Warranty : Lifetime

• Product Type: Ethernet Switch
• Part: JD374A
• Type : Managed, Layer 4
• Product Series : 5500
• Product Model : 5500 24G SFP EI
• Ports: 24 fixed Gigabit Ethernet SFP ports, 8 dual-personality ports, 2 port expansion module slots
• Form Factor: Rack-mountable 1U
•  2 Power Supply Slots
• Limited Warranty : Lifetime 2.0

• Product Type: Ethernet Switch
• Part: JG240A
• Type : Managed, Layer 4
• Product Series : 5500
• Product Model : 5500 48G EI
• Ports: 48 x 10/100/1000 + 4 x shared SFP
• PoE: PoE+370W
• Form Factor: Rack-mountable 1U
• Limited Warranty : Lifetime 2.0

• Product Type: Ethernet Switch
• Part: JG241A
• Type : Managed, Layer 4
• Product Series : 5500
• Product Model : 5500 24G EI
• Ports: 24 x Gigabit SFP + 8 x shared 10/100/1000
• Form Factor: Rack-mountable 1U
• Limited Warranty : Lifetime 2.0

• Product Type: Ethernet Switch
• Part: JD375A
• Type : Managed, Layer 3
• Product Series : 5500
• Product Model : 5500 48G EI
• Ports: 48 x 10/100/1000 + 4 x shared SFP
• Form Factor: Rack-mountable 1U
• Limited Warranty : Lifetime

• Product Type: Ethernet Switch
• Part: JD377A
• Type : Managed, Layer 3
• Product Series : 5500
• Product Model : 5500 24G EI
• Ports: 20 x 10/100/1000 + 4 dual SFP + 2 slots
• Form Factor: Rack-mountable 1U
• Limited Warranty : Lifetime

• Product Type: Ethernet Switch
• Part: J9311A
• Type : Managed, Layer 4
• Product Series : 3500
• Product Model : 3500 48G PoE+ yl
• Ports: 48 x 10/100/1000 (PoE) + 4 x shared SFP
• PoE: PoE+398W
• Form Factor: Rack-mountable 1U
• Limited Warranty : Lifetime

• Product Type: Ethernet Switch
• Part: J9310A
• Type : Managed, Layer 4
• Product Series : 3500
• Product Model : 3500 24G PoE+ yl
• Ports: 24 x 10/100/1000 (PoE) + 4 x shared SFP
• PoE: PoE+398W
• Form Factor: Rack-mountable 1U
• Limited Warranty : Lifetime

• Product Type: Network Cable Type
• Part: JD363B
• Cable: Ethernet 10G Base-CX4 cable
• Connectivity: Wired, Local Connect
• Lenght: 50 cm
• Designed For HPE 5120-48G-PoE+, 5500-24G-PoE+-4SFP, 5500-24G-SFP, 5500-48G-4SFP


• Product Type: Expansion module
• Part : JD360B
• Type : Local Connect Module
• Product Series : 5500
• Form Factor : Plug-in module
• Connectivity: Wired
• Ports: 2-port 10GbE SFP+ Module
• Designed For HP A5120-24, A5120-48, A5500-24, A5500-48; HPE 5120-24, 5120-48
• Limited Warranty : Lifetime

• Product Type: Network Expansion module
• Part : JD368B
• Type : Managed
• Product Series : 5120
• Form Factor : Plug-in module
• Connectivity: Wired
• Ports: 2-port 10GbE SFP+ Module
• Designed For HP A5120, A5500; HPE 4210, 4500, 4510, 4800
• Limited Warranty : Lifetime


• Product Type: Network Expansion module
• Part : JD368B
• Type : Managed
• Product Series : 5500
• Form Factor : Plug-in module
• Connectivity: Wired
• Ports: 2-port 10GbE SFP+ Module
• Expansion slot: 1 No
• Designed For HP A5120, A5500; HPE 4210, 4500, 4510, 4800
• Limited Warranty : Lifetime


• Product Type : Ethernet Switch
• Part : JG236A
• Type : Managed, Layer 4
• Product Model : 5120-24G EI
• Ports: 20 10/100/1000 Mbps + 4 SFP ports
• With 2 Interface Slots
• IRF capable on 10GBE ports only
• PoE: PoE+370W
• Product Series : 5120
• Limited Warranty : Lifetime

• Product Type : Ethernet Switch
• Part : JE072A
• Type : Managed, Layer 4
• Product Model : 5120-48G SI
• Ports: 48 x 10/100/1000 + 4 x SFP
• Product Series : 5120
• Form Factor : Rack-mountable 1U
• IRF available over GbE links
• Limited Warranty : Lifetime

• Product Type : Ethernet Switch
• Part : JE074A
• Type : Managed, Layer 4
• Product Model : 5120-24G SI
• Ports: 24 x 10/100/1000BASE-T +  4 SFP ports
• With 2 Interface Slots
• IRF available over GbE links
• Form Factor: Rack-mountable 1U
• Product Series : 5120
• Limited Warranty : Lifetime


• Product Type : Ethernet Switch
• Part : JE069A
• Type : Managed, Layer 3
• Product Model : 5120-48G EI
• Ports: 48 x 10/100/1000 + 4 x SFP
• Product Series : 5120
• Form Factor : Rack-mountable 1U
• IRF capable on 10GBE ports only
• Limited Warranty : Lifetime

• Product Type : Ethernet Switch
• Part : JE068A
• Type : Managed, Layer 4
• Product Model : 5120-24G EI
• Ports: 20 x 10/100/1000BASE-T + 4x dual personality port
• With 2 Interface Slots
• IRF capable on 10GBE ports only
• Product Series : 5120
• Limited Warranty : Lifetime

• Product Type : Ethernet Switch
• Part : JE067A
• Type : Managed, Layer 4
• Product Model : 5120-48GG
• Ports: 48G x 10/100/1000 + 4 x SFP
• Product Series : 5120
• Form Factor : Rack-mountable 1U
• Limited Warranty : Lifetime

• Product Type : Expansion Module
• Part : J9731A
• Type: HPE Module
• Product Series : 2920
• Slots: 1 x Expansion Slot, Interfaces slot - 2 x network - SFP+
• Form Factor : Plug-in module
• Type: Stacking
• Connectivity: Wired
• Ports: 2 Ports

• Product Type : Network Stacking Cable
• Part : J9735A
• Type: HPE stacking cable - 1 m
• Product Series : 2920
• Type: Stacking Cable
• Length: 1 m
• Designed For Aruba 2920-24G, 2920-24G-PoE+, 2920-48G, 2920-48G-PoE+

• Product Type : Network Stacking Module
• Part : J9733A
• Type : Managed, Stacking, Layer 3
• Product Series : 2920
• Form Factor : Plug-in module
• Cabling Type: Stacking
• Connectivity: Wired
• Ports: 2 Ports
• Designed For HP 2920-24G Switch, 2920-24G-POE+ Switch, 2920-48G Switch, 2920-48G-POE+ Switch
• Limited Warranty : Lifetime

• Product Type : Ethernet Switch
• Part : J9836A
• Type : Managed, Layer 3
• Product Model : 2920 -48G
• Ports: 44 x 10/100/1000 + 4 x combo Gigabit SFP
• Product Series : 2920
• Form Factor : Rack-mountable
• PoE: PoE+ 740 W
• Limited Warranty : Lifetime

• Product Type : Ethernet Switch
• Part : J9729A
• Type : Managed, Layer 3
• Product Model : 2920 -48G
• Ports: 44 x 10/100/1000 + 4 x combo Gigabit SFP
• Product Series : 2920
• Form Factor : Rack-mountable
• PoE: PoE+ 370 W
• Limited Warranty : Lifetime

• Product Type : Ethernet Switch
• Part : J9728A
• Type : Managed, Layer 3
• Product Model : 2920 -48G
• Ports: 44 x 10/100/1000 + 4 x combo Gigabit SFP
• Product Series : 2920
• Form Factor : Rack-mountable
• Limited Warranty : Lifetime

• Product Type : Ethernet Switch
• Part : J9727A
• Type : Managed, Layer 3
• Product Model : 2920 -24G 2SFP
• Ports: 20 x 10/100/1000 + 4 x combo Gigabit SFP
• Product Series : 2920
• Form Factor : Rack-mountable
• PoE:  PoE+370W
• Limited Warranty : Lifetime

• Product Type : Ethernet Switch
• Part : J9726A
• Type : Managed, Layer 3
• Product Model : 2920 -24G 2SFP
• Ports: 20 x 10/100/1000 + 4 x combo Gigabit SFP
• Product Series : 2920
• Form Factor : Rack-mountable
• Limited Warranty : Lifetime

• Product Type : Ethernet Switch
• Part : JG315A
• Type : Managed, Layer 3
• Product Model : 3100 -48 2SFP
• Ports: 48 x 10/100 + 2 x SFP ports + 2 fixed SFP ports
• Product Series : 3100
• Form Factor : Desktop, Rack-mountable
• Limited Warranty : Lifetime

• Product Type : Ethernet Switch
• Part : JD320B
• Type : Managed, Layer 3
• Product Model : 3100 -24 2SFP
• Ports: 24 x 10/100 + 2 x SFP ports
• Product Series : 3100
• Form Factor : Desktop, Rack-mountable
• Limited Warranty : Lifetime

• Product Type : Ethernet Switch
• Part : JD313B
• Type : Managed, Layer 3
• Product Model : 3100 -24 2SFP
• Ports: 24 x 10/100 + 2 x SFP
• Product Series : 3100
• Form Factor : Rack-mountable
• PoE: PoE+370W
• Limited Warranty : Lifetime


• Product Type : Ethernet Switch
• Part : JG223A
• Type : Managed, Layer 3
• Product Model : 3100 -24 2SFP
• Ports: 24 x 10/100 + 2 x SFP ports
• Product Series : 3100
• Form Factor : Desktop, Rack-mountable
• Limited Warranty : Lifetime

• Product Type : Ethernet Switch
• Part : J9627A
• Type : Managed, Layer 3
• Product Model : 2620 -48 2SFP
• Ports: 48 x 10/100 + 2 x 10/100/1000 + 2 x SFP
• Product Series : 2620
• Form Factor : Desktop, Rack-mountable
• PoE: PoE+382W
• Limited Warranty : Lifetime


• Product Type : Ethernet Switch
• Part : J9626A
• Type : Managed, Layer 3
• Product Model : 2620-48 2SFP
• Ports: 48 x 10/100 + 2 x 10/100/1000 + 2 x SFP
• Product Series : 2620
• Form Factor : Desktop, Rack-mountable
• Limited Warranty : Lifetime

• Product Type : Ethernet Switch
• Part : J9625A
• Type : Managed, Layer 4
• Product Model : 2620-24 2SFP
• Ports: 24 x 10/100 + 2 x 10/100/1000 + 2 x SFP
• Product Series : 2620
• Form Factor : Desktop, Rack-mountable
• PoE: PoE+382W
• Limited Warranty : Lifetime

• Product Type : Ethernet Switch
• Part : J9624A
• Type : Managed, Layer 4
• Product Model : 2620-24 2SFP
• Ports: 24 x 10/100 + 2 x 10/100/1000 + 2 x SFP
• Product Series : 2620
• Form Factor : Rack-mountable
• PoE: PoE+128W
• Limited Warranty : Lifetime

• Product Type : Ethernet Switch
• Part : J9623A
• Type : Managed, Layer 4
• Product Model : 2620-24 2SFP
• Ports: 24 x 10/100 + 2 x 10/100/1000 + 2 x SFP
• Product Series : 2620
• Form Factor : Rack-mountable
• Limited Warranty : Lifetime

• Product Type : Ethernet Switch
• Part : J9854A
• Type : Smart Managed
• Product Model : 2530-24G 2SFP
• Ports: 24 x 10/100/1000 + 2 x 10 Gigabit SFP+
• Product Series : 2530
• Form Factor : Desktop, Rack-mountable, Wall Mountable
• PoE: PoE+195W
• Limited Warranty : Lifetime


• Product Type : Ethernet Switch
• Part : J9853A
• Type : Smart Managed
• Product Model : 2530-48G 2SFP
• Ports: 48 x 10/100/1000 + 2 x 10 Gigabit SFP+
• Product Series : 2530
• Form Factor : Desktop, Rack-mountable, Wall Mountable
• PoE: PoE+370W
• Limited Warranty : Lifetime

• Product Type : Ethernet Switch
• Part : J9856A
• Type : Smart Managed
• Product Model : 2530-24G 2SFP
• Ports: 24 x 10/100/1000 + 2 x 10 Gigabit SFP+
• Product Series : 2530
• Form Factor : Desktop, Rack-mountable, Wall Mountable
• Limited Warranty : Lifetime

• Product Type : Ethernet Switch
• Part : J9855A
• Type : Smart Managed
• Product Model : 2530-48G 2SFP
• Ports: 48 x 10/100/1000 + 2 x 10 Gigabit SFP+
• Product Series : 2530
• Form Factor : Desktop, Rack-mountable, Wall Mountable
• Limited Warranty : Lifetime

• Product Type : Ethernet Switch
• Part : J9772A
• Type : Smart Managed, Layer 2
• Product Model : 2530-48G 2SFP
• Ports: 48 x 10/100/1000 + 4 x Gigabit SFP
• Product Series : 2530
• Form Factor : Desktop, Rack-mountable, Wall Mountable
• PoE: PoE+382W
• Limited Warranty : Lifetime

• Product Type : Ethernet Switch
• Part : J9775A
• Type : Smart Managed, Layer 2
• Product Model : 2530-48G 2SFP
• Ports: 48 x 10/100/1000 + 4 x Gigabit SFP
• Product Series : 2530
• Form Factor : Desktop, Rack-mountable, Wall Mountable
• PoE: No
• Limited Warranty : Lifetime

• Product Type : Ethernet Switch
• Part : J9773A
• Type : Smart Managed, Layer 2
• Product Model : 2530-24G 2SFP
• Ports: 24 x 10/100/1000 + 4 x Gigabit SFP
• Product Series : 2530
• Form Factor : Desktop, Rack-mountable, Wall Mountable
• PoE: PoE+195W
• Limited Warranty : Lifetime

• Product Type : Ethernet Switch
• Part : J9776A
• Type : Smart Managed, Layer 2
• Product Model : 2530-24G 2SFP
• Ports: 24 x 10/100/1000 + 4 x Gigabit SFP
• Product Series : 2530
• Form Factor : Desktop, Rack-mountable, Wall Mountable
• PoE: No
• Limited Warranty : Lifetime

• Product Type : Ethernet Switch
• Part : J9774A
• Type : Smart Managed, Layer 2
• Product Model : 2530-8G 2SFP
• Ports: 8 x 10/100/1000 + 2 x combo Gigabit SFP
• Product Series : 2530
• Form Factor : Desktop, Rack-mountable, Wall Mountable
• PoE: PoE+67W
• Limited Warranty : Lifetime

• Product Type : Ethernet Switch
• Part : J9777A
• Type : Smart Managed, Layer 2
• Product Model : 2530-8G 2SFP
• Ports: 8 x 10/100/1000 + 2 x combo Gigabit SFP
• Product Series : 2530
• Form Factor : Desktop, Rack-mountable, Wall Mountable
• PoE: No
• Limited Warranty : Lifetime

• Product Type : Ethernet Switch
• Part : J9775A
• Type : Smart Managed, Layer 2
• Product Model : 2530-48G 2SFP
• Ports: 48 x 10/100 + 2 x combo Gigabit SFP + 2 x 10/100/1000
• Product Series : 2530
• Form Factor : Rack-mountable, Wall Mountable
• PoE: PoE+382W
• Limited Warranty : Lifetime

• Product Type : Ethernet Switch
• Part : J9781A
• Type : Smart Managed, Layer 2
• Product Model : 2530-48G 2SFP
• Ports: 48 x 10/100 + 2 x combo Gigabit SFP + 2 x 10/100/1000
• Product Series : 2530
• Form Factor : Rack-mountable, Wall Mountable
• Limited Warranty : Lifetime


• Product Type : Ethernet Switch
• Part : J9779A
• Type : Smart Managed, Layer 2
• Product Model : 2530-24G
• Ports: 24 x 10/100 + 2 x combo Gigabit SFP + 2 x 10/100/1000
• Product Series : 2530
• Form Factor : Rack-mountable with 2 dual SFP ports
• PoE : PoE+195W
• Limited Warranty : Lifetime

• Product Type : Ethernet Switch
• Part : J9782A
• Type : Smart Managed, Layer 2
• Product Model : 2530-24G 2SFP
• Ports: 24 x 10/100 + 2 x combo Gigabit SFP + 2 x 10/100/1000
• Product Series : 2530
• Form Factor : Rack-mountable, Wall Mountable
• Limited Warranty : Lifetime

• Product Type : Ethernet Switch
• Part : J9780A
• Type : Smart Managed, Layer 2
• Product Model : 2530-8G
• Ports: 8 x 10/100 + 2 x combo Gigabit SFP
• Product Series : 2530
• Form Factor : Rack-mountable with 2 dual SFP ports
• PoE : PoE+67W
• Limited Warranty : Lifetime

• Product Type : Ethernet Switch
• Part : J9783A
• Type : Smart Managed, Layer 2
• Product Model : 2530-8G
• Ports: 8 x 10/100 + 2 x combo Gigabit SFP
• Product Series : 2530
• Form Factor : Rack-mountable with 2 dual SFP ports
• PoE : No
• Limited Warranty : Lifetime

• Product Type : Ethernet Switch
• Part : JG963A
• Type : Smart Managed with 10G Uplink and stacking
• Product Model : 1950-48G 2SFP
• Ports: 48 x 10/100/1000 + 2 x Gigabit SFP / 10 Gigabit SFP+ + 2 x 10Gb Ethernet
• Product Series : 1950
• Form Factor : Rack-mountable
• PoE : PoE+370W
• Limited Warranty : Lifetime

• Product Type : Ethernet Switch
• Part : JG962A
• Type : Smart Managed with 10G Uplink and stacking
• Product Model : 1950-24G 2SFP
• Ports: 24 x 10/100/1000 + 2 x Gigabit SFP / 10 Gigabit SFP+ + 2 x 10Gb Ethernet
• Product Series : 1950
• Form Factor : Rack-mountable
• PoE : PoE+370W
• Limited Warranty : Lifetime

• Product Type : Ethernet Switch
• Part : JG961A
• Type : Smart Managed with 10G Uplink and stacking
• Product Model : 1950-48G 2SFP
• Ports: 48 x 10/100/1000 + 2 x Gigabit SFP / 10 Gigabit SFP+ + 2 x 10Gb Ethernet
• Product Series : 1950
• Form Factor : Rack-mountable
• PoE : No
• Limited Warranty : Lifetime

• Product Type : Ethernet Switch
• Part : JG960A
• Type : Smart Managed with 10G Uplink and stacking
• Product Model : 1950-24G 2SFP
• Ports: 24 x 10/100/1000 + 2 x Gigabit SFP / 10 Gigabit SFP+ + 2 x 10Gb Ethernet
• Product Series : 1950
• Form Factor : Rack-mountable
• PoE : No
• Limited Warranty : Lifetime

• Product Type : Ethernet Switch
• Part : JG928A
• Type : Smart Managed
• Product Model : 1920-48G
• Ports: 48 x 10/100/1000
• Product Series : 1920
• Form Factor : Desktop, Rack-mountable
• PoE : PoE+370W
• Limited Warranty : Lifetime

• Product Type : Ethernet Switch
• Part : JG927A
• Type : Smart Managed
• Product Model : 1920-48G
• Ports: 48 x 10/100/1000 + 4 x Gigabit SFP
• Product Series : 1920
• Form Factor : Desktop, Rack-mountable
• PoE : PoE+370W
• Limited Warranty : Lifetime

• Product Type : Ethernet Switch
• Part : JG926A
• Type : Smart Managed
• Product Model : 1920-24G
• Ports: 24 x 10/100/1000 + 4 x Gigabit SFP
• Product Series : 1920
• Form Factor : Desktop, Rack-mountable
• PoE : PoE+ 370W
• Limited Warranty : Lifetime

• Product Type : Ethernet Switch
• Part : JG925A
• Type : Smart Managed
• Product Model : 1920-24G
• Ports: 24 x 10/100/1000 + 4 x Gigabit SFP
• Product Series : 1920
• Form Factor : Desktop, Rack-mountable
• PoE : PoE+ 180W
• Limited Warranty : Lifetime

• Product Type : Ethernet Switch
• Part : JG924A
• Type : Smart Managed
• Product Model : 1920-24G
• Ports: 24 x 10/100/1000 + 4 x Gigabit SFP
• Product Series : 1920
• Form Factor : Desktop, Rack-mountable
• PoE : No
• Limited Warranty : Lifetime

• Product Type : Ethernet Switch
• Part : JG923A
• Type : Smart Managed
• Product Model : 1920-16G
• Ports: 16 x 10/100/1000 + 4 x Gigabit SFP
• Product Series : 1920
• Form Factor : Desktop, Rack-mountable
• PoE : No
• Limited Warranty : Lifetime

• Product Type : Ethernet Switch
• Part : JG922A
• Type : Smart Managed
• Product Model : 1920-8G
• Ports: 8 x 10/100/1000 + 2 x Gigabit SFP
• Product Series : 1920
• Form Factor : Desktop, Rack-mountable & Wall Mountable
• PoE : PoE+ (180 W)
• Limited Warranty : Lifetime

• Product Type : Ethernet Switch
• Part : JG921A
• Type : Smart Managed
• Product Model : 1920-8G
• Ports: 8 x 10/100/1000 + 2 x Gigabit SFP
• Product Series : 1920
• Form Factor : Desktop, Rack-mountable & Wall Mountable
• PoE : PoE+ (65 W)
• Limited Warranty : Lifetime

• Product Type : Ethernet Switch
• Part : JG920A
• Type : Smart Managed
• Product Model : 1920-8G
• Ports: 8 x 10/100/1000 + 2 x Gigabit SFP
• Product Series : 1920
• Form Factor : Desktop, Rack-mountable & Wall Mountable
• PoE :No
• Limited Warranty : Lifetime

• Product Type : Ethernet Switch
• Part : J9981A
• Type : Semi Managed - Web
• Product Model : 1820-48G
• Ports: 48 x 10/100/1000 + 4 x Fast Ethernet/Gigabit SFP
• Product Series : 1820
• Form Factor : Desktop, Rack-mountable & Wall Mountable
• PoE :No
• Limited Warranty : Lifetime

• Part : J9086A
• Type : Managed
• Product Description : HPE 2610-24-PoE Switch - switch - 24 ports - Managed - rack-mountable
• Device Type : Switch - 24 ports - Managed - stackable
• Enclosure Type : Rack-mountable
• Subtype : Fast Ethernet
• Ports : 24 x 10/100 + 2 x SFP + 2 x 10/100/1000
• MAC Address Table Size : 8K entries
• Routing Protocol : IGMPv3

• Part : J9089A
• Type : Managed
• Product Description : HPE 2610-48-PoE Switch - switch - 48 ports - Managed - rack-mountable
• Device Type : Switch - 48 ports - Managed - stackable
• Enclosure Type : Rack-mountable
• SubtypeFast : Ethernet
• Ports : 48 x 10/100 + 2 x SFP + 2 x 10/100/1000
• MAC Address Table Size : 8K entries
• Routing Protocol : IGMPv3

• Product Type : Ethernet Switch
• Part : J9980A
• Type : Semi Managed - Web
• Product Model : 1820-24G
• Ports: 24 x 10/100/1000 + 2 x Fast Ethernet/Gigabit SFP
• Product Series : 1820
• Form Factor :  Desktop, Rack-mountable & Wall Mountable
• PoE :No
• Limited Warranty : Lifetime

• Product Type : Ethernet Switch
• Part : J9979A
• Type : Semi Managed - Web
• Product Model : 1820-8G
• Ports: 8 x10/100/1000 Ports
• Product Series : 1820
• Form Factor : Desktop, Rack-mountable & Wall Mountable
• PoE :No
• Limited Warranty : Lifetime

• Product Type : Ethernet Switch
• Part : JG914A
• Type : Managed - Entry Level Web
• Product Model : 1620-48G
• Ports: 48 x10/100/1000 Ports
• Product Series : 1620
• Form Factor : Rack-mountable & Wall Mountable
• PoE :No
• Limited Warranty : Lifetime

• Product Type : Ethernet Switch
• Part : JG913A
• Type : Semi Managed - Entry Level Web
• Product Model : 1620-24G
• Ports: 24 x10/100/1000 Ports
• Product Series : 1620
• Form Factor : Rack-mountable
• PoE :No
• Limited Warranty : Lifetime

• Product Type : Ethernet Switch
• Part : JG912A
• Type : Semi Managed - Entry Level Web
• Product Model : 1620-8G
• Ports: 8 x10/100/1000 Ports
• Product Series : 1620
• Form Factor : Rack-mountable & Wall Mountable
• PoE :No
• Limited Warranty : Lifetime

• Product Type : Ethernet Switch
• Part : JH019A
• Type : Un-Managed
• Product Model : 1420-24G-2SFP+ 10G Uplink
• Ports: 24 RJ-45 autosensing 10/100/1000 ports
• Product Series : 1420
• Form Factor : Rack-mountable
• PoE : PoE+ model supports 124 W PoE/PoE+ power budget
• Limited Warranty : Lifetime

• Product Type : Ethernet Switch
• Part : JH018A
• Type : Un-Managed
• Product Model : 1420-24G 2SFP-2SFP+ 10G Uplink
• Ports: 24x10/100/1000 + 2x 10G SFP
• Product Series : 1420
• Form Factor : Rack-mountable
• PoE : PoE+ model supports 124 W PoE/PoE+ power budget
• Limited Warranty : Lifetime

• Product Type : Ethernet Switch
• Part : JH017A
• Type : Un-Managed
• Product Model : 1420-24G-2SFP + Uplink
• Ports: 24x10/100/1000 + 2x true SFP
• Product Series : 1420
• Form Factor : Rack-mountable
• Height : 1.7"
• Width : 17.3"
• Limited Warranty : Lifetime

• Part : JH016A
• Type : Un-Managed
• Ports : 16 RJ-45 autosensing 10/100/1000BASE-T
• Other ports : n/a
• Stackable : No
• Form factor : Desktop, Rack Mountable
• Power Supply : Internal
• PoE : Yes
• Product type :  Ethernet Switch
• Limited Lifetime Warranty

• Part : JH329A
• Type : Un-Managed Switch
• Ports : 8 x10/100/1000BASE-T
• Form factor : Desktop
• Power Supply : External
• PoE : No
• Ventilation : Fanless
• Limited Lifetime Warranty
